Water Vapor Absorption Tester is used to determine the coefficient of water vapor absorption on leather and non-leather upper.
Brand:
GESTERItem NO.:
GT-KC51Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
30 daysProduct Detail

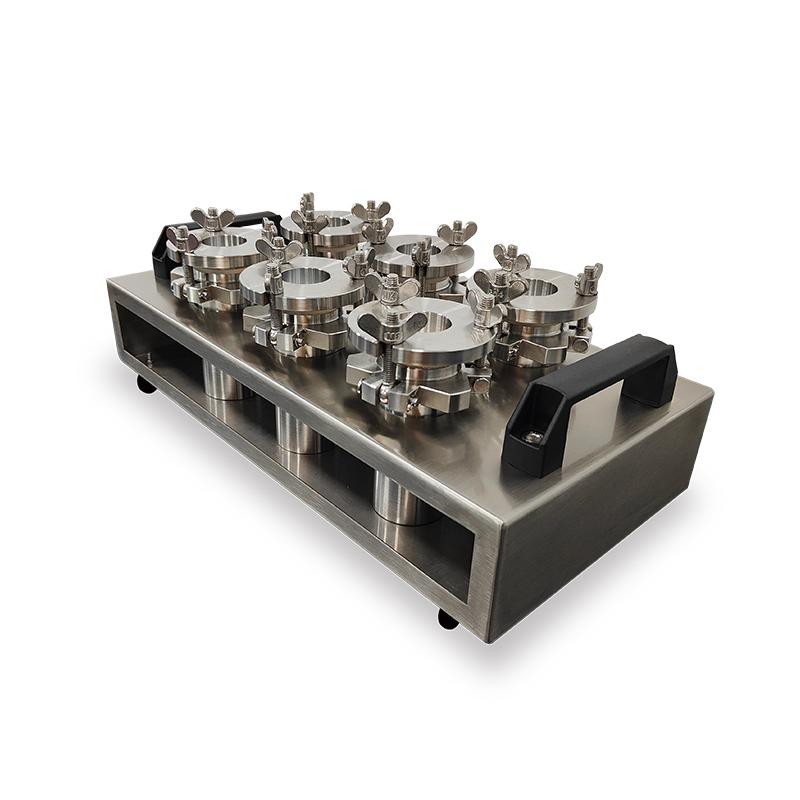

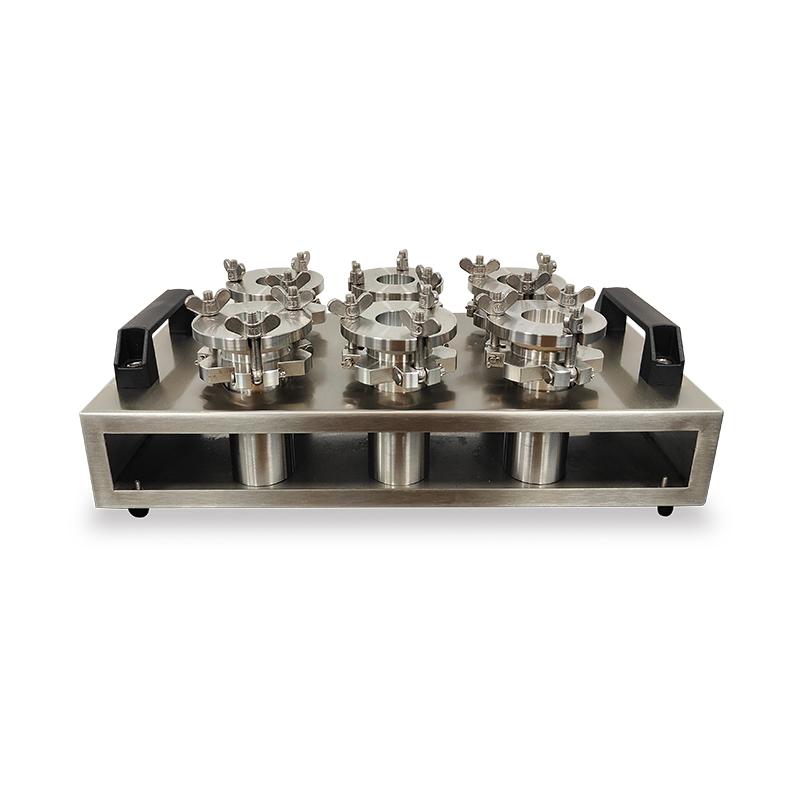

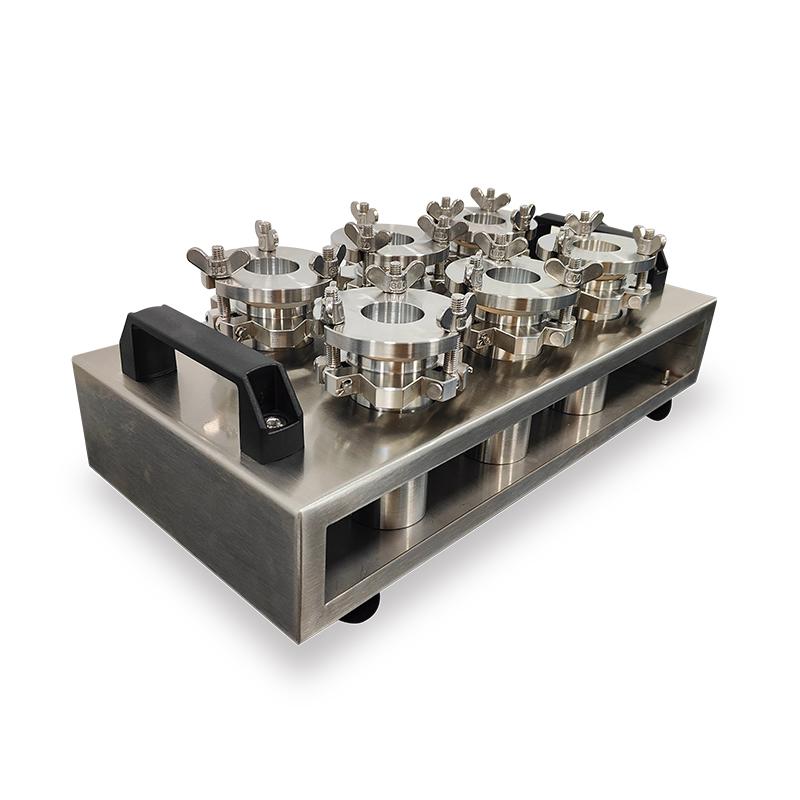

Water Vapor Absorption Tester GT-KC51
|

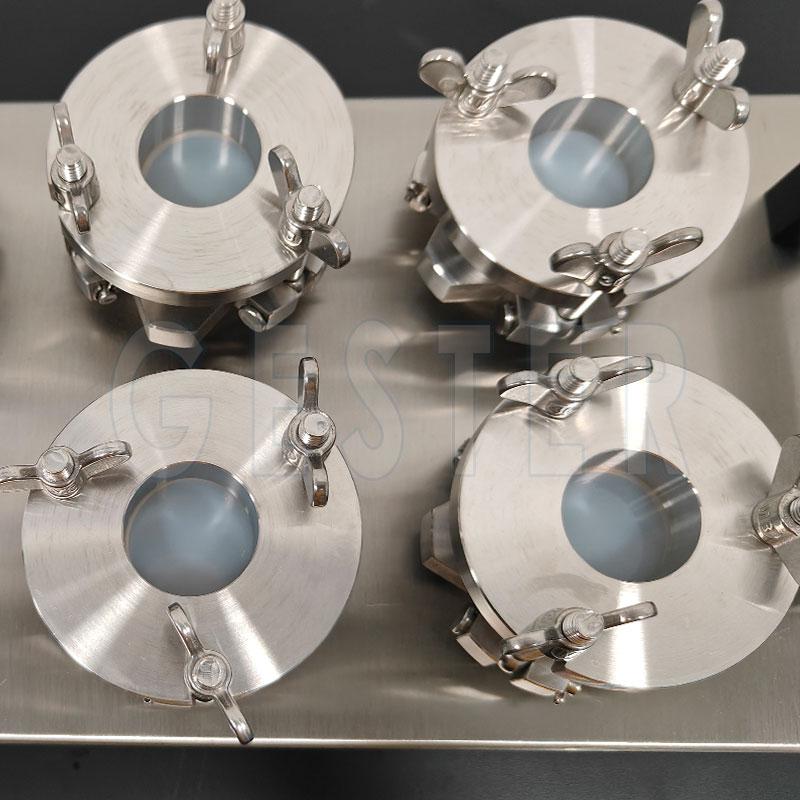

Application: Water Vapor Absorption Tester is used to determine the coefficient of water vapor absorption on leather and non-leather upper. The equipment is basically composed by six stainless steel cups that are inserted in plastic base which maintain them in vertical position. Standards: EN ISO 20344 Section 6.7 and 6.8, AS/NZS 2210.2 Section 6.7 and 6.8, GB/T 20991 Section 6.7 and 6.8, EN 344-1 Section 5.13, ISO 17229 |

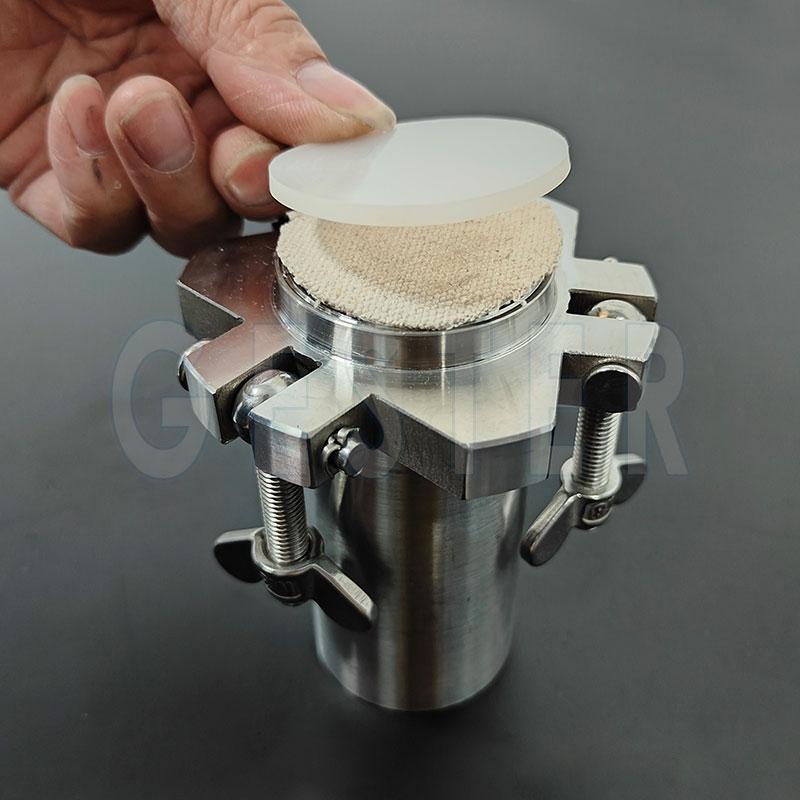

Put 50ml water into the testing container, then install both sample and impervious materials on the mouth of the container. After a periods of testing in a specified environmental condition, the water vapor absorption can be jugged by the mass change before and after testing.
|
Model |
GT-KC51 |
|
Positions |
6sets, while can test 6 pcs testing samples |
|
Volume of testing cup |
100ml |
|
Inner diameter of hole |
35mm |
|
Sample size |
43 mm |
|
Dimensions |
45x22x17cm ( L x W x H ) |
|
Weight |
6kg |
