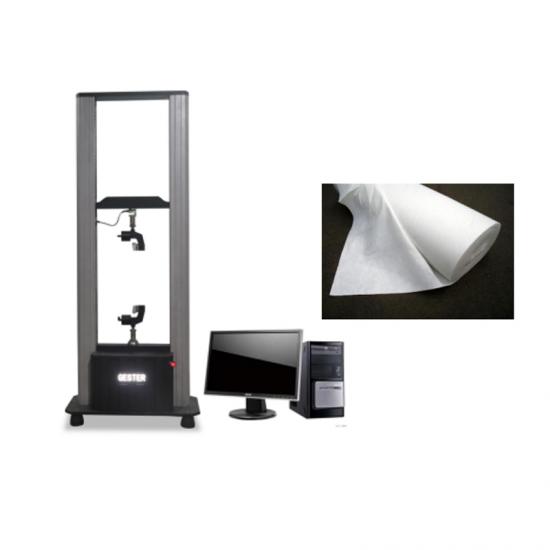

Universal Tensile Strength Testing Machine (Geotextile) GT-C01-3

Universal Tensile Strength Testing Machine is designed for testing geosynthetics in transportation, water conservation, tunnel, construction those industry.

Brand:
GESTER
Item NO.:
GT-C01-3
Order(MOQ):
1
Payment:
L/C T/T
Shipping Port:
China Port
Lead Time：
10-30 Days

Inquire now

Product Detail

Universal Tensile Strength Testing Machine (Geotextile) GT-C01-3

Product Introduction

Application:

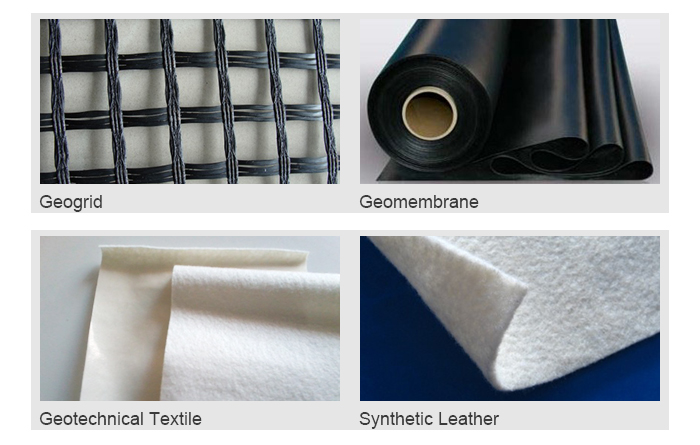

This Universal Tensile Testing Machine is designed for testing geosynthetics in transportation, water conservation, tunnel, construction those industry. It is concluding stretch, tearing, busting, peeling, seam testing of geotextile, composite geotextiles, geogrid, geomenbrane.

Standards:
GB/T13763, 14800, 19978, EN ISO 12236, ASTM 4595, ASTM D 4632

Feature

This Universal Testing Machine Double-column gantry structure, generous shape with operating stability.

AC servo system drive, ball screw, suitable for all kinds of geotextile tensile tests.

Have security protect measures of limiting displacement, over capacity, force value.

Import sensor, the force precision above 0.2% F.S.

Universal tensile testing machine equip with online port, specialty development material strength test software. It can print and save report & provide test data for geotextile assaying.

Can provide all kinds of relative standard test function or customized according to customer.

Its software can do data analysis of breaking point, break off point, yield point, initial modulus and Elasticity plasticity deformation, easy to do mechanics test analysis of varieties of materials.

Key Specifications

Model	GT-C01-3
Speed Adjust Range	30KN, 50KN, 100KN
Force Resolution	1/100,000
Force Accuracy	≤+/-0.2% F.S
Stroke Resolution	0.01 mm
Test Speed	0.01-500mm/min
Stroke Space	1000mm
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Machine Drive	Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive
Operate Control	Can use Operation Screen, Connecting with Computer, Pad and Cellphone
Dimensions (WxDxH)	1050×700×1750mm
Weight	300kg
Power Supply	AC380V 50/60HZ 1.5KW

Accessories:

Standard accessories	1set	Manual Grips for Tensile, Tearing
	1set	Manual Grips for CBR Bursting
	1pc	English Operation Software
	1pc	Cable Connect with PC
	1pc	Load cell
Optional accessories	Optional Optional	Other Grips and Load Cell
Optional accessories	Optional	Desk Top Computer

Application Industry

All kinds of electroplating materials can be tested on the Universal Tensile Strength Testing Machine(Geotextile)

Universal Tensile Strength Testing Machine(Geotextile)
