Small Ball Test Fixture is use to examine a toy up of whether small ball accessories may result in the child swallow, stop breath way and esophagus to cause choking danger or not.
Brand:
GESTERItem NO.:
GT-M47Order(MOQ):
1Payment:
L/C or T/TShipping Port:
Xiamen PortLead Time：
in stockProduct Detail

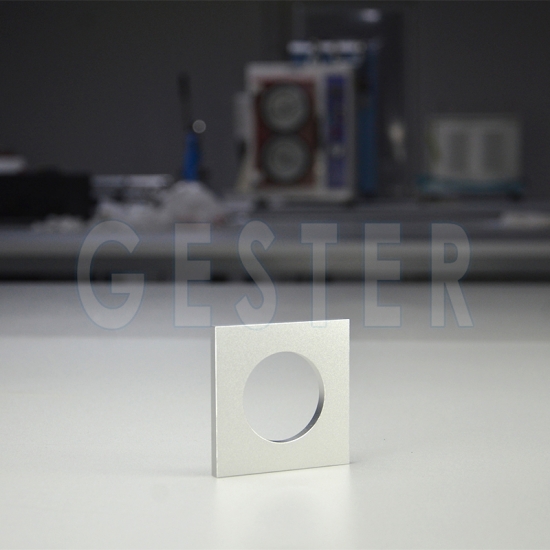

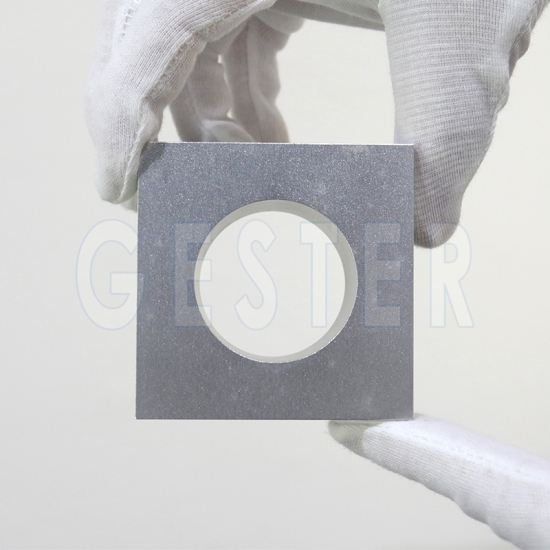

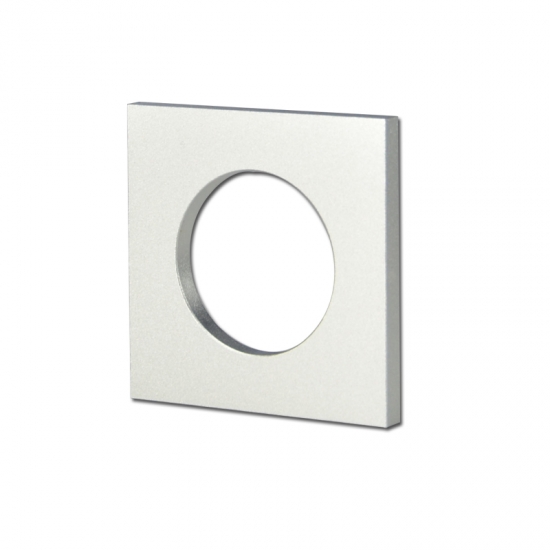

Small Ball Test Template GT-M47
|
Application: Small ball test fixture is use to examine a toy up of whether small ball accessories may result in the child swallow, stop breath way and esophagus to cause choking danger or not. mainly used to test suction cups toy and ball toy or toys parts.Standards: EN-71-1 ASTM F963 ISO 8124-1 GB6675-2
|

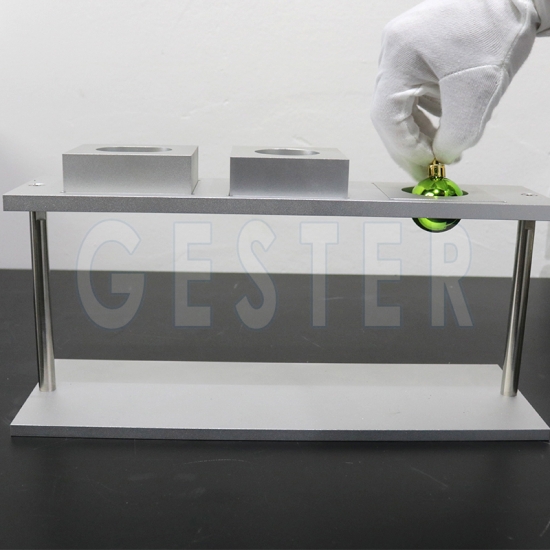

1. Position and clamp Template C so that the axis of the slot is substantially vertical and the slot is unobstructed at its top and bottom openings.
2. Place the ball or the suction cup or the toy with an attached suction cup without compressing it,
in any orientation in the slot so that the force on the ball or suction cup or toy with an attached
suction cup is only the force due to its mass.
3. Determine whether the ball or suction cup or toy with an attached suction cup passes entirely
through Template C.

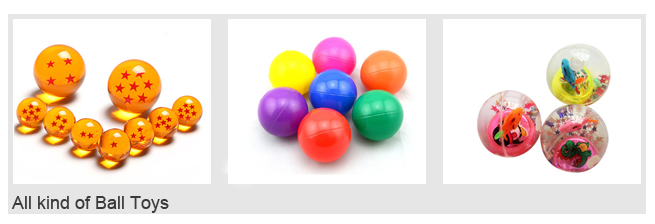

Many kinds of ball toys can be tested on Small Ball Test Template.
