Shore AM Durometer GT-KD09-TIME5433

Shore AM Durometer,Rubber hardness tester,Rubber Durometer

Standards:GB/T531.1 ,ISO7619-1, ASTMD 2240-Type M

Brand:
GESTER
Item NO.:
GT-KD09-LX-AM
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
30 days after receive the advance

Inquire now

Product Detail

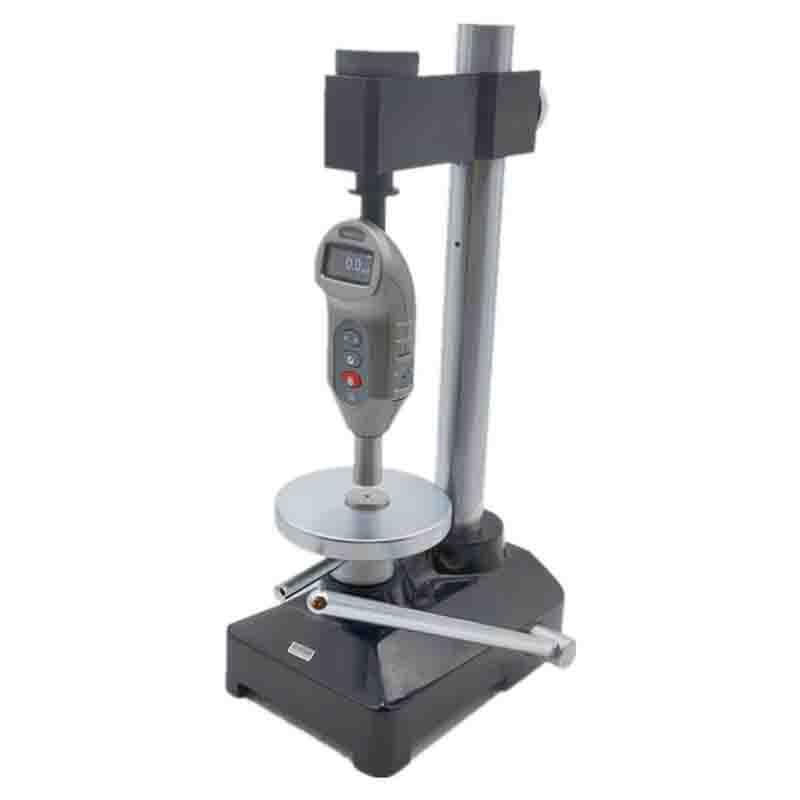

Shore AM Durometer GT-KD09-TIME5433

Product Introduction

Application:

Shore durometer is mainly used to determine the hardness of vulcanized rubber in the ordinary hardness range.

Standards:

GB/T531.1 ,ISO7619-1, ASTMD 2240-Type M

Principle

Press a certain shape of steel indenter into the surface of the sample under the action of the specified test force. When the surface of the indenter is in close contact with the surface of the sample, the end face of the indenter has a certain protruding length L relative to the plane of the presser foot. , the longer the length L, the lower the Shore hardness, and vice versa.

Key Specifications

Model	GT-KD09-TIME5433
Measurement range	0～100HAM
Measuring error	≤±1HAM（Within 20～90HAM）
Resolution	0.1HAM
Power source	Built-in rechargeable lithium batteries
Standards	GB/T531.1 ,ISO7619-1, ASTMD 2240-Type M
