Insole / Insock Absorption and Desorption Tester GT-KC07

Shoe Testing Machine Manufacturers Suppliers

Brand:
GESTER
Item NO.:
GT-KC07
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
China Port
Lead Time：
10-30 days

Inquire now

Product Detail

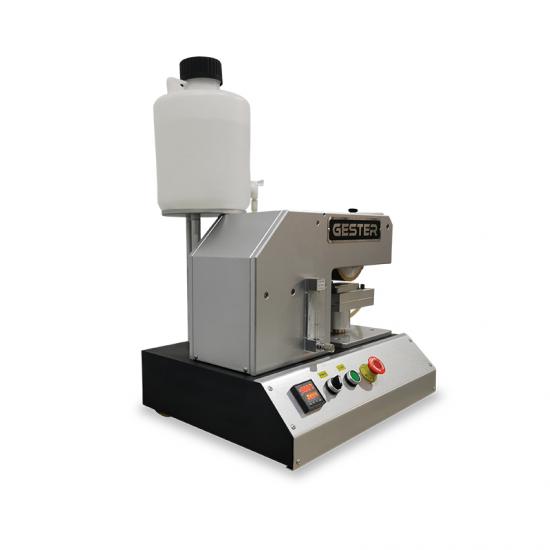

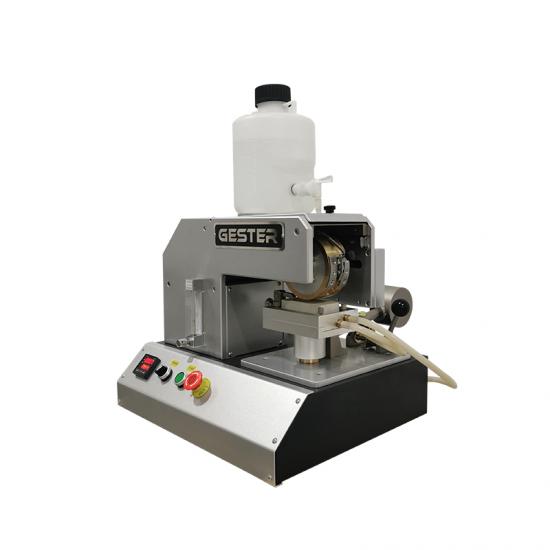

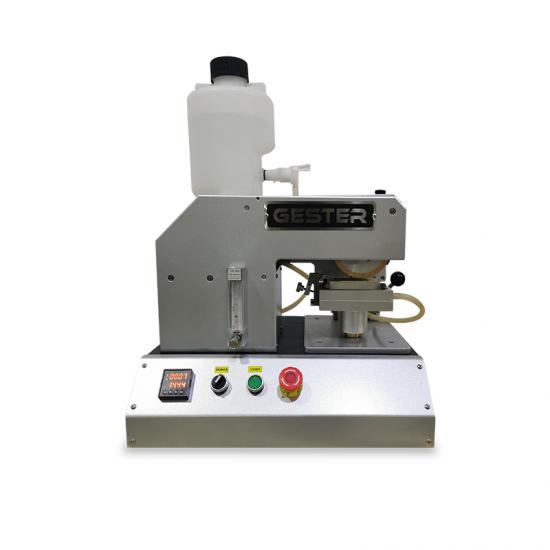

Insole / Insock Absorption and Desorption Tester GT-KC07

Product Introduction

Application:

This Insole / Insock Absorption And Desorption Tester is used to determine the water absorption and desorption of insole and insock for various shoes. The specimen, placed onto a wet base plate, is submitted to repeated flexing during under a given pressure (in the same manner as the insole of a shoe during working).

Dimensions

Insole / Insock Absorption and Desorption Tester GT-KC07

Key Specifications

Model	GT-KC07A	GT-KC07B

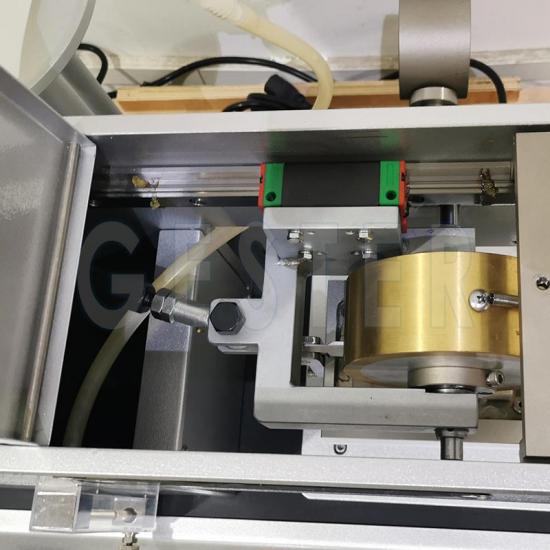

Brass Roller	Diameter (120 + 1) mm , Width(50 + 1) mm
Speed	20 ± 1 cycles / min
Stroke	50 ± 2 mm	100 ± 2 mm
Press Load	80 ± 5N
Water Flow Rate	7.5 ± 2.5 ml/min
Sample Size	110±11 ×40±1mm	100±1 ×40±1mm
Timer	0~999h59m59s
Power Supply	1∮AC 220V 50/60HZ
Dimensions	65 x 45 x 75 cm
Weight	104kg
Standards	EN ISO 20344 section 7.2 GB/T 20991 section 7.2 EN ISO 20347 section 5.7.3 AS/NZS 2210.2 section 7.2 EN 12746, ISO 22649, SATRA TM220 BS 3144 section 22	ISO5404
