Velcro Fatigue Tester is applicable for repeatedly open and close motion for touch and close fasteners and velcro tapes.
Brand:
GESTERItem NO.:
GT-K19Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
Have in stockProduct Detail

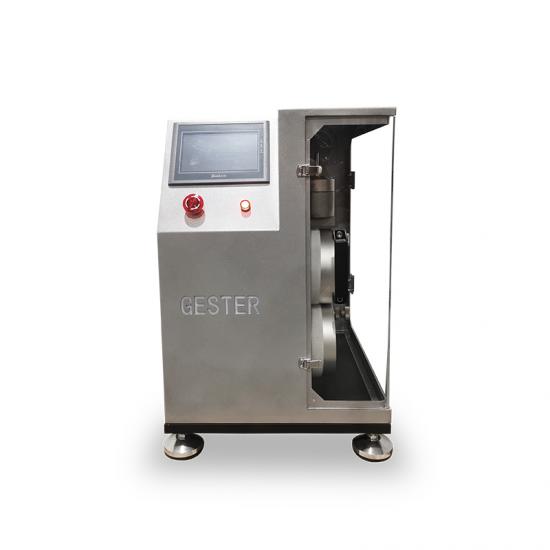

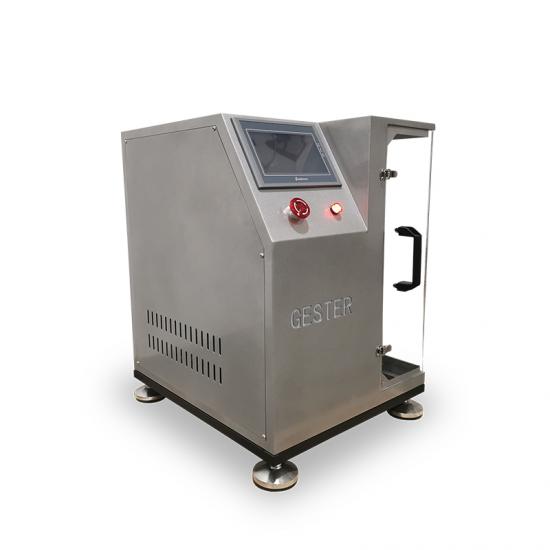

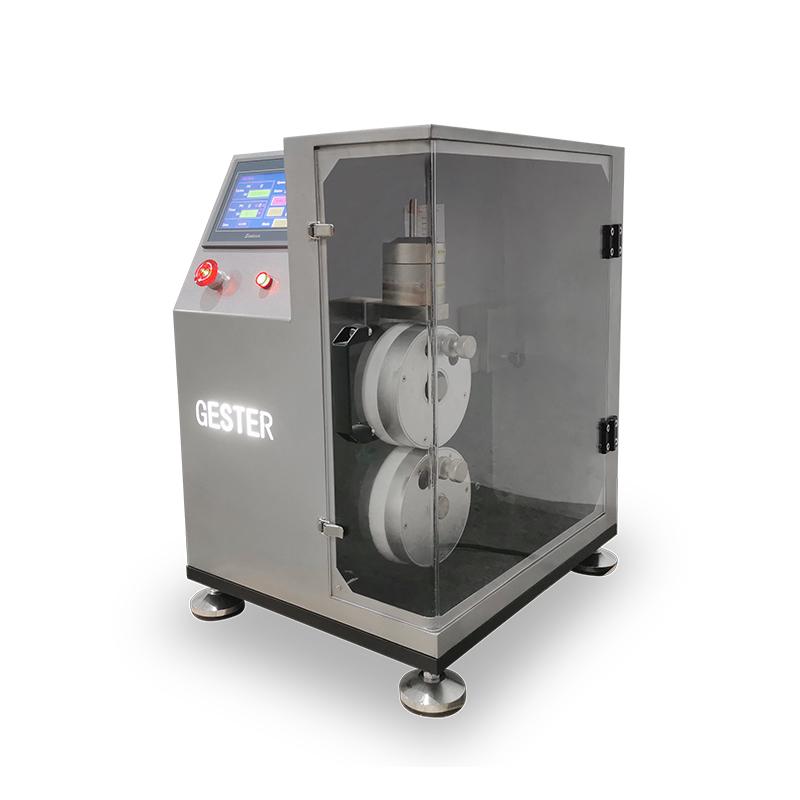

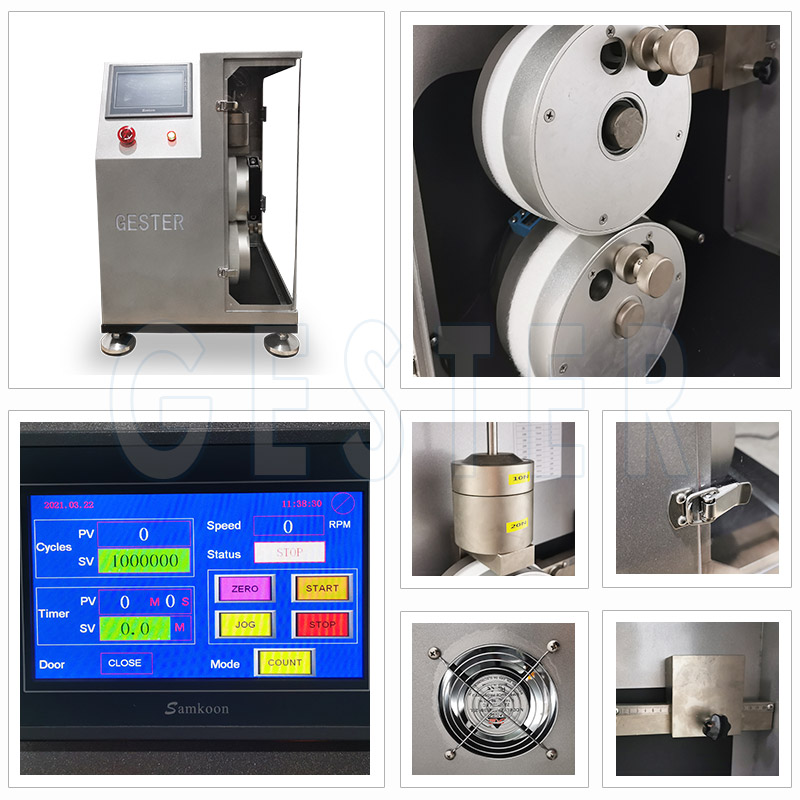

Hook and Loop Fatigue Tester GT-K19
Application:
Hook and Loop Fatigue Tester is applicable for repeatedly open and close motion for touch and close fasteners.
Standards:
DIN 3415, BS EN ISO 22776, BS EN ISO 22777
SATRA TM123, GB/T3903.20, GB/T3903.21, GB/T 23315

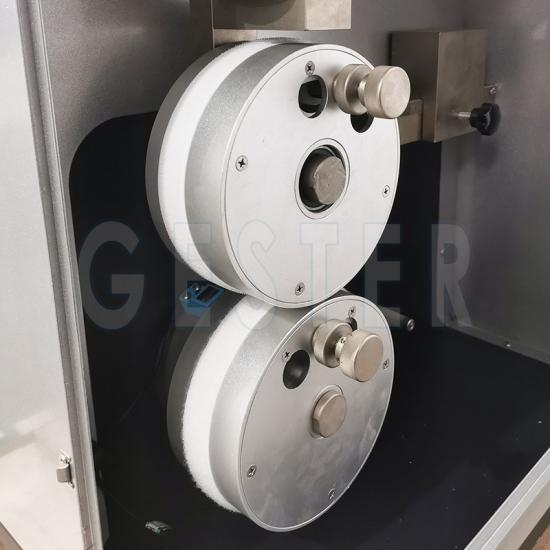

Install the hook and annular respectively on two rollers of this device. Stick them together under certain load and to generate repeated opening and closing motion through a certain times of forward and reversal rotating. After that, remove the sample and determine its peeling and shear strength testing on tensile tester.
|
Model |
GT-K19 |
|
Control method |

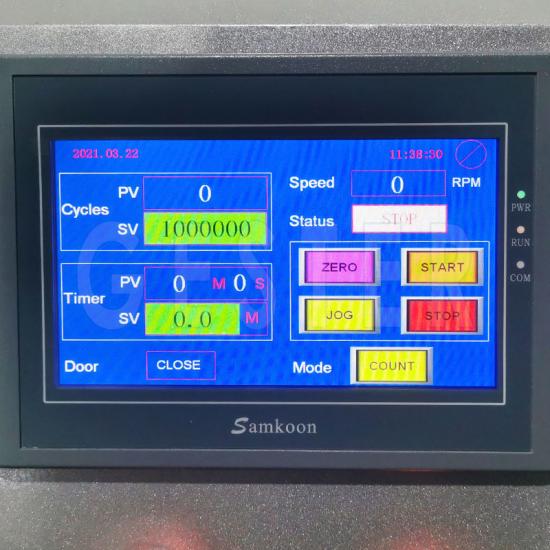

LCD Touch screen controlled |
|
Sample dimension |
Length 540±10mm, width: 20~50mm |
|
Upper idling drum |
Diameter 162.5±0.5mm |
|
Under driven drum |
Diameter 160±0.5mm |
|
Drum width |
70mm |
|
Clamp slot |
Width 4mm, length 55±2mm |
|
Test speed |
60±5r/min |
|
Reversal intervals |
30±5 s |
|
Test load |
1±0.1N/mm |
|
Test times |
5000 cycles |
|
Power supply |
1∮AC 220V 50/60HZ |
|
Dimensions( L x W x H ) |
55 cm ×45 cm ×65 cm |
|
Weight |
55kg |
