Height Gauge GT-KB30

Height Gauge GT-KB30

Application:

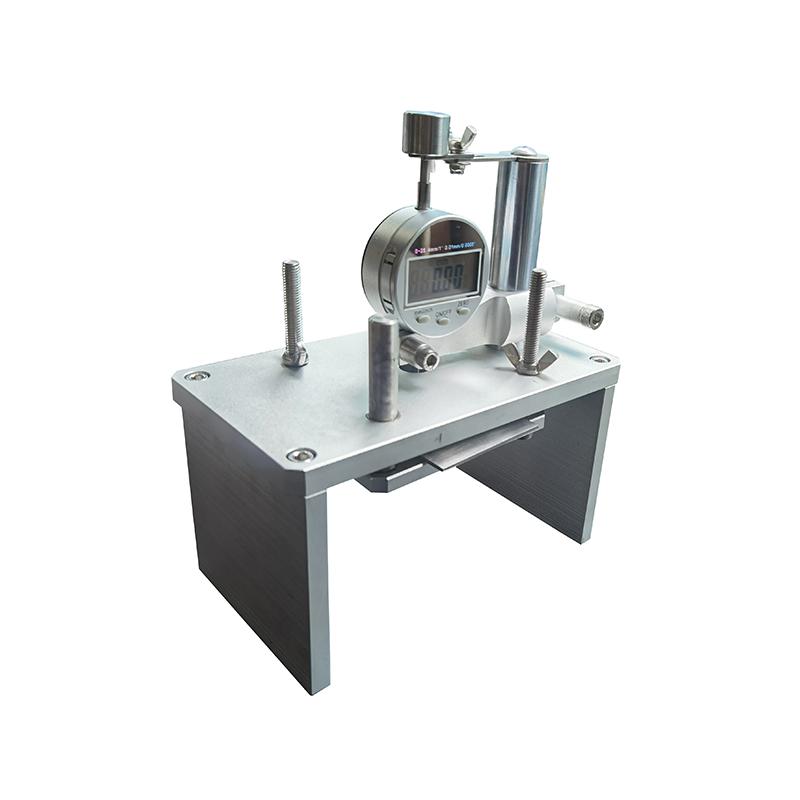

The height gauge consisting of

A.A flat plate with a clamping ring meeting the requirements and filled on its lower surface.

B.A hole through the plate which is at the centre of the clamping ring and of diameter less than the clamping ring but large enough to allow the spindle of the thickness gauge to move freely within it.

C.A thickness gauge which.

1. has a spindle with a spherical lower surface of radius 1.5 ± 0.2 mm;

2. applies a force of 0.55 ± 0.10 N to the spindle;

3. is capable of measuring to the nearest 0.05 mm; and

4. is mounted so that the spindle passes vertically

through the hole in the flat plate.
