Horizontal and Vertical Flame Chamber is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade.

Needle Flame Tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument. Apply to the test standards IEC60695,GB5169, etc.

tracking index tester

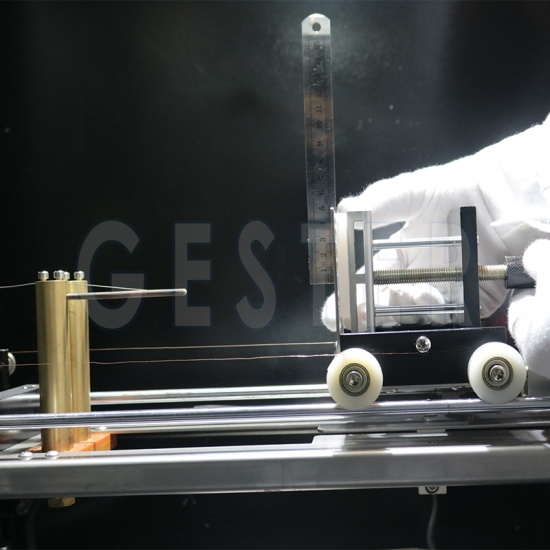

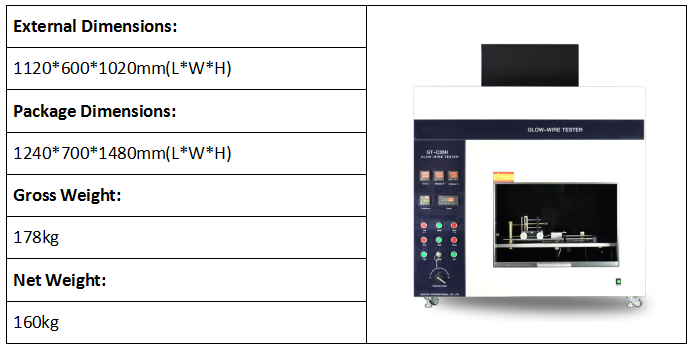

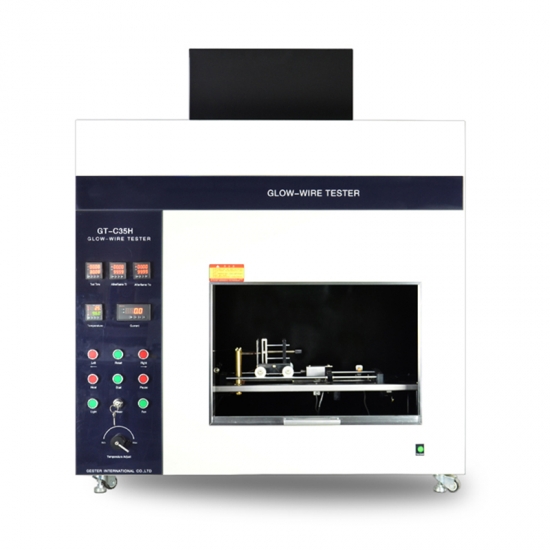

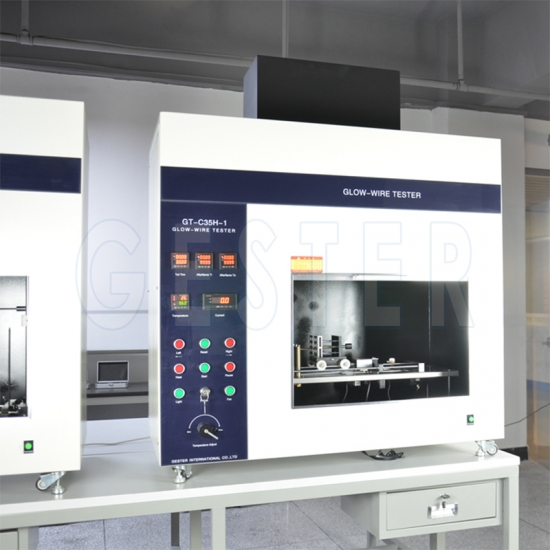

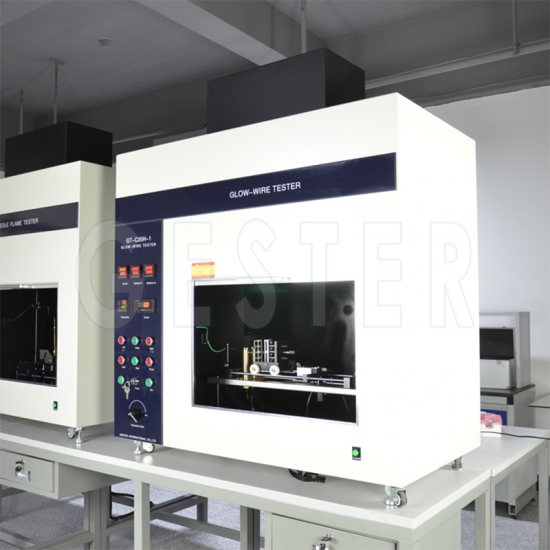

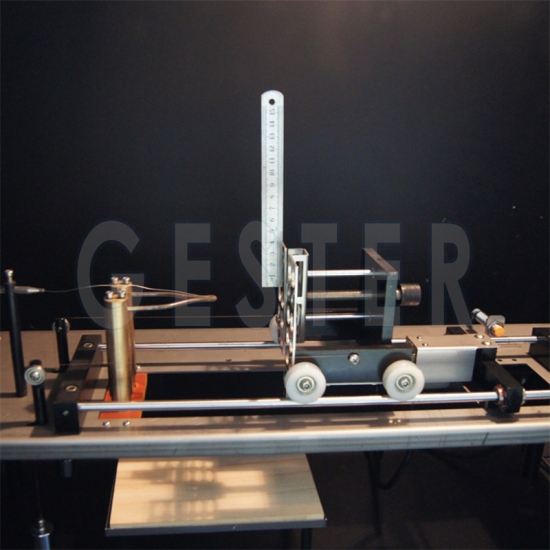

Glow wire tester is the latest release of the flaming test equipment, with programmable touch screen control model, adopted with imported components.

Hot Wire Ignition Tester GT-MC38 Product Introduction Standards: IEC60950, GB4943, IEC 60477-1 clause 5.2.5.4 Feature Programmable control system Precision adjustable power supply Imported aluminum fixture Equipped with test ventilation device One-button timing device Advanced power control system Multiple safety protection system Tempered glass window   Key Specification   Model GT-MC38 Internal dimensions 1120mm*600mm*1020mm (W*D*H) Internal volume ≥0.5m³ Controller 7-inch programmable controller Hot wire material Nickel-Chromium wire (Nickel 80%, Chromium 20%) Hot wire length 250mm Hot wire diameter 0.5mm Hot wire cold resistance 5.28Ω Hot wire power 0.26W/mm±4% Test time 0.01-999.99S can be set   Ignite time 0.01-999.99S Stop burning time 0.01-999.99S   Accessories Standard Accessories 1 pc  Hot wire 1 pc  Fixture 1.5metres  Current line 2.5metres  Exhaust pipe

Opening Size Tester (Dry Sieving)

Linear abrasion tester is suitable for testing the abrasion resistance of plastic, auto parts, rubber, leather, textile, electroplating, paint and printing pattern and so on.

This Tensile Strength Tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for a variety of materials.
