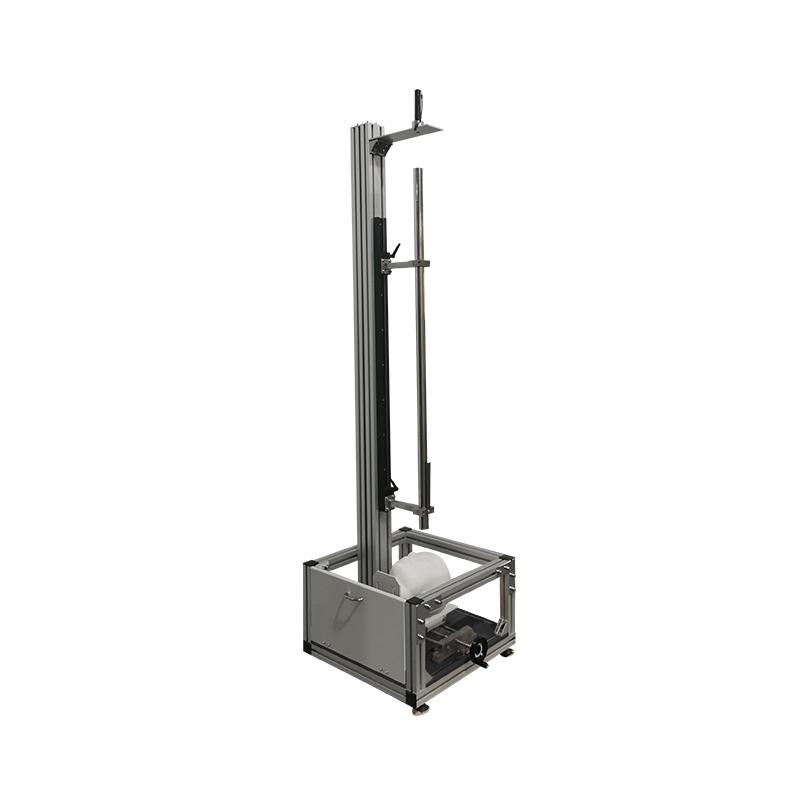

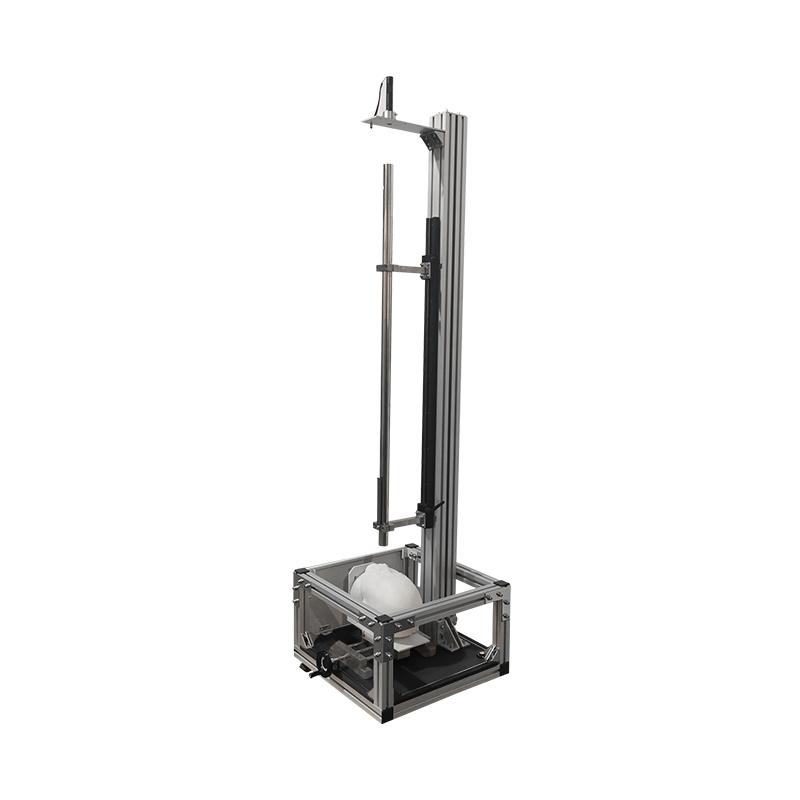

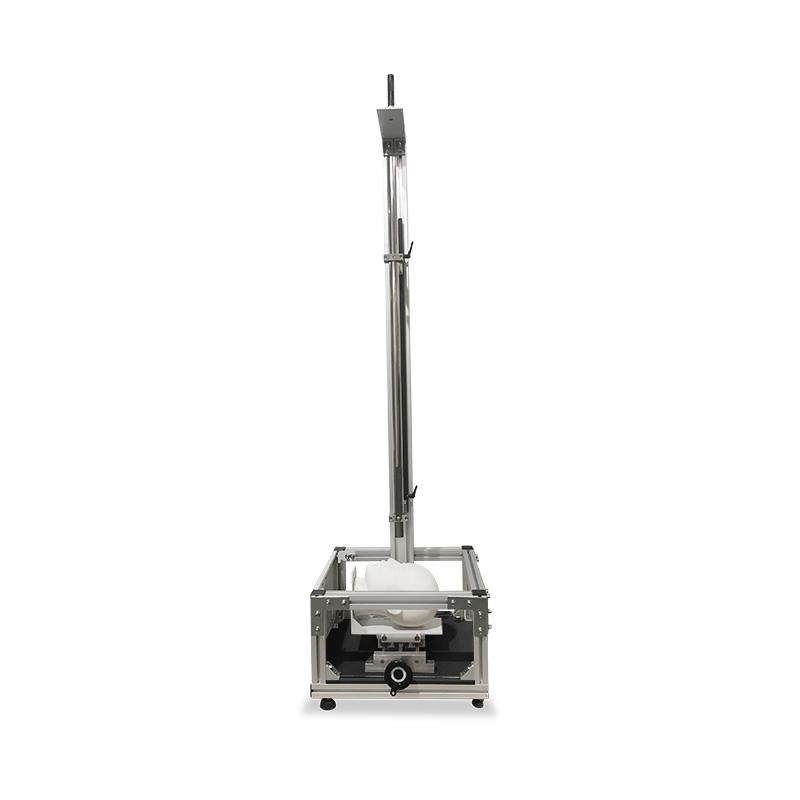

Glasses Impact Resistance Tester GT-RB04

This Impact Testing Machine is used to detect the impact resistance performance of glasses.
  • Brand:

    GESTER
  • Item NO.:

    GT-RB04
  • Order(MOQ):

    1
  • Lead Time:

    10-30 days
  • Product Detail

Glasses Impact Resistance Tester GT-RB04



Product Introduction

Application:

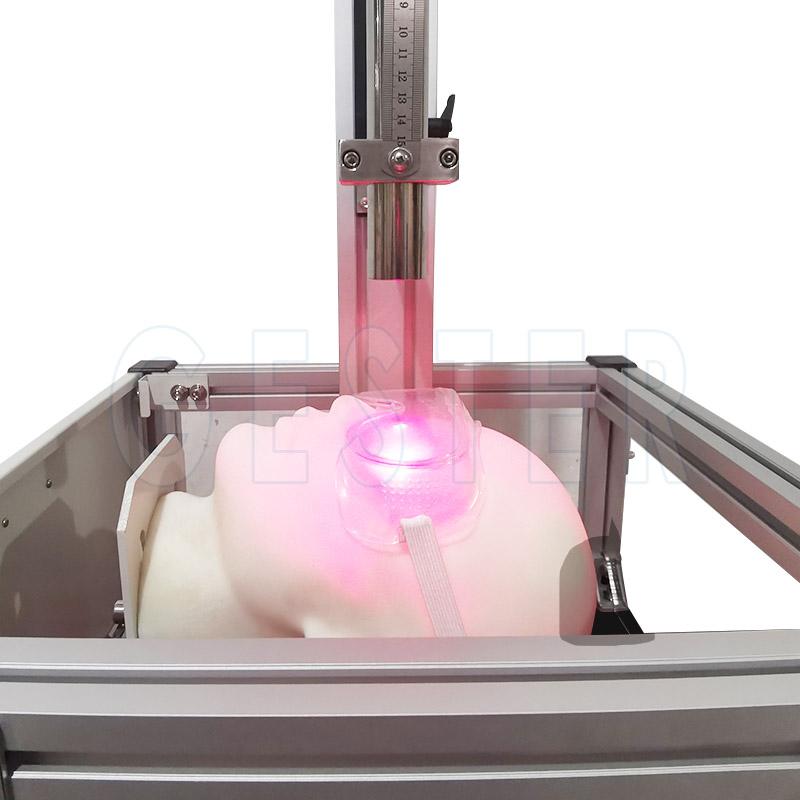

This instrument is used to detect the impact resistance performance of glasses. The test method is to fix the glasses on the head mold or the lens fixed sample holder, and use the free fall of steel balls to impact the glasses to detect the rupture or shedding of the glasses due to the impact of external force to judge the safety of wearing.



Standards:

GB 2626-2019, QBT 2659, QBT 2457, ANSI Z87.1, EN 166, EN 1836, CNS 15067, ANSI Z80



Feature:

1.The height of the instrument is adjustable, which is convenient for various height tests.
2.Glasses Impact Resistance Tester: Red laser pointer, aiming at the impact point, easy to use.

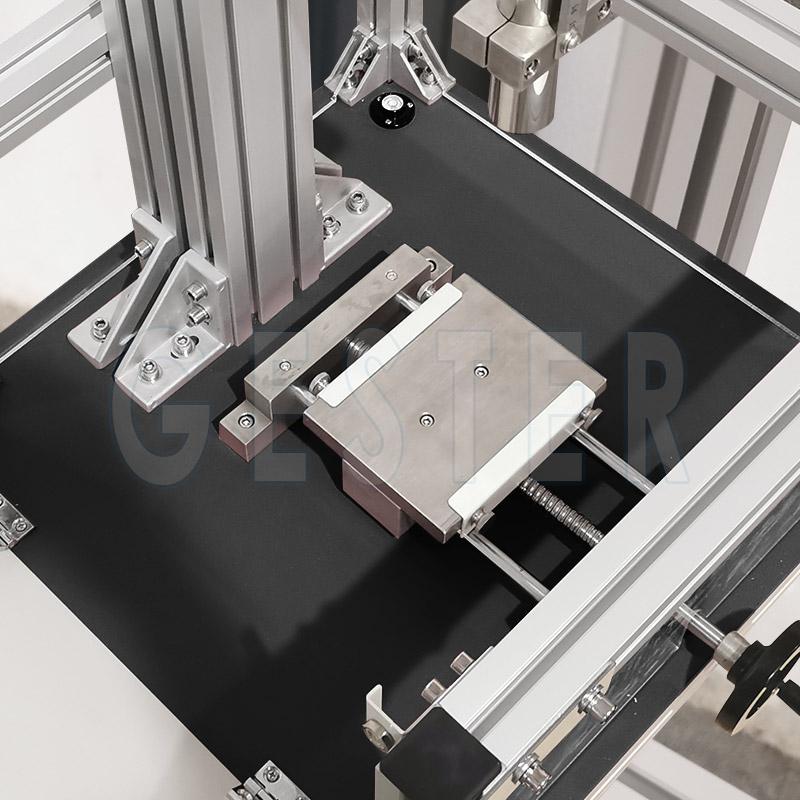

3.The installation of the head mold, the front, back, left and right positions can be adjusted, and the operation is simple.


Glasses Impact Resistance Tester Specifications



Model

GT-RB04

Impact height:

1270mm

Steel ball diameter

φ16mm; mass: 16g;

φ22mm; mass: 43g;

Dimensions

570 × 550 × 1800mm;

Weight

40kg
