Brand:
GESTERItem NO.:
GT-LA10DOrder(MOQ):
1Lead Time：
20-30 daysProduct Detail

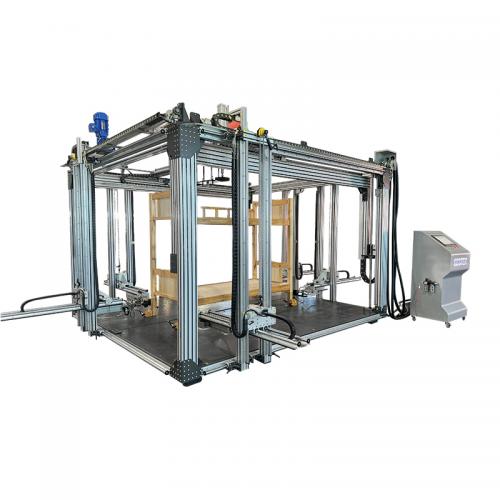

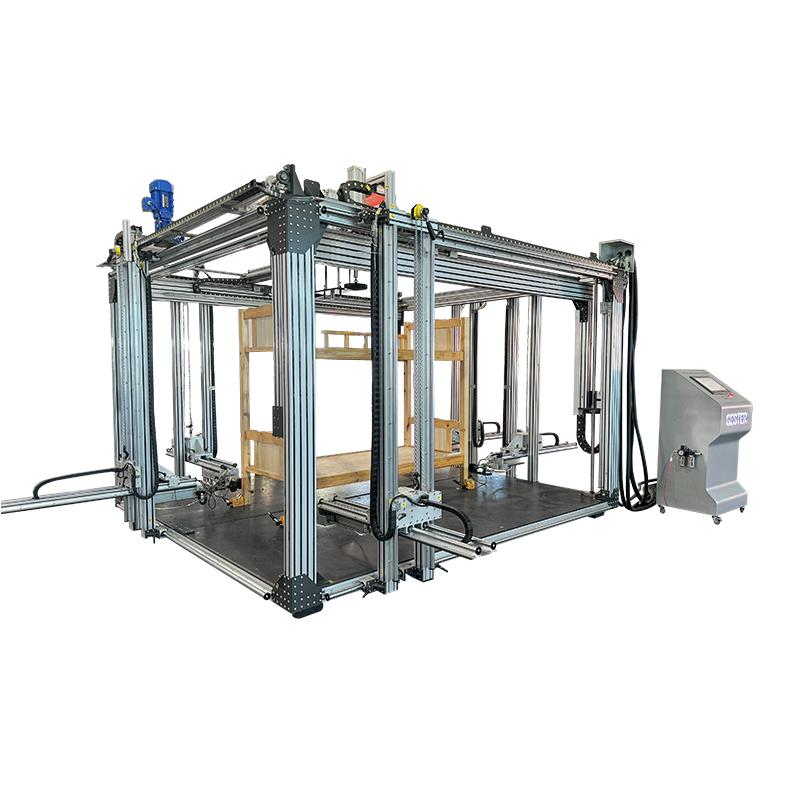

Furniture Universal Testing Machine PLC control GT-LA10D
Application:
This Furniture tester is used for testing the mechanical properties of tables, desks, beds, crib and chairs. Can perform the horizontal static load, vertical static load, impact test and durability test.
Feature:
1. The Furniture Testing Machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2.Up to 8 sets of loading cylinder installed, 5 sets in horizontal cylinders on each of the four sides, 2 sets of vertical cylinder and 1set of impact cylinder on top frame. All cylinders can be adjusted up and down, frontward and backward to cover all mounting surfaces. The 8 sets of cylinders can execute joint or independent operation.
3. The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4. PLC +15 inch color touch screen to control the actions of the machine; the operation is intuitive and simple.
5. GESTER independent research and development unique design, adopting SMC electrical proportional valve control+cylinder drive mode way to greatly meet the international standards of force accuracy and test speed double requirements; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6. Removable loading pad, can easily change the different loading pad to meet the different test requirements.
|
Control mode |
PLC control |
|
The Max. length of specimen |
3m |
|
Force sensor |
2.5KN |
|
Control mode |
PLC+ Touch screen +GESTER system |
|
Driving method |
AIRTAC cylinder: 8 pcs SMC electrical proportional valve 7pcs |
|
Air supply |
≥0.6Mpa |
|
Power supply |
AC 220V 50HZ/60HZ |
|
Machine dimensions |
5980 × 5680 x 3940mm (L×W×H) |
|
Machine weights |
3000KG |
Standards
Tables & Desks&Storage Units
EN1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 7.2, 7.3 ,
BS EN 15372-2016 Test1, Test2, Test3, Test5, Test6, Test8, Test10,
AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R
AS NZS 4442-1997 Annex A,B,H,J
EN527-3, EN581-3,
GB/T 10357.1,
ISO 7170 Section 6.2.2, 6.4.1,7.5.2
BS4875-7（corresponding with ISO7170)
Chairs& Stool
EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 6.24, 7.3, 7.4, 7.9, 8.2, 8.4.1,8.5 , 8.8
EN581-2-2015 （corresponding with EN1728-2012),
EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1
EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, 5.3.7
EN 16139-2013 （corresponding with EN1728-2012)
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8, 7.10
BS5459-2-2000 Section A5.1 5.2
BS5459-2-2000 Section A5.2,
GB/T 10357.3 -2013 Section 4.3, 6.4,4.7,4.8,4.10,4.11,6.9
Bed
EN 1725-2023 Section 6.6 TEST 1,2,3,4,5,6,7,8,12
EN 747-2 Section 5.4,5.5,5.6.1,5.7,5.8
ISO198833-2018Section 6.2,6.3.1,6.3.2,6.4.1,6.4.2,6.4.3,6.5.1,6.5.2, 6.6
Standard Accessories
|
Standard Accessories |
- Horizontal loading device 5 sets - Vertical loading device 2 sets - Impact device 1 set - Stoppers 6pcs - Force sensor 7 pcs - Electric Proportional Valve 7 pcs - Motor 1 set - GT-LB01-6 Seat Impactor Devise 1Set - GT-LB01-3 Smaller seat loading pad 2 pcs - GT-LB01-2 Seat loading pad 2 pcs - GT-LB01-5 Local loading pad 7 pcs - GT-LB01-4 Back loading pad 2 pcs - English Manual - Certificate of Quality |
