Full Automatic Tester For Filament Kinkled Shrinkage Ratio GT-B25

The curl contraction and boiling water shrinkage of deformation silk.(polyester, nylon, polypropylene)

Brand:
GESTER
Item NO.:
GT-B25
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
China Port
Lead Time：
10-30 Days

Inquire now

Product Detail

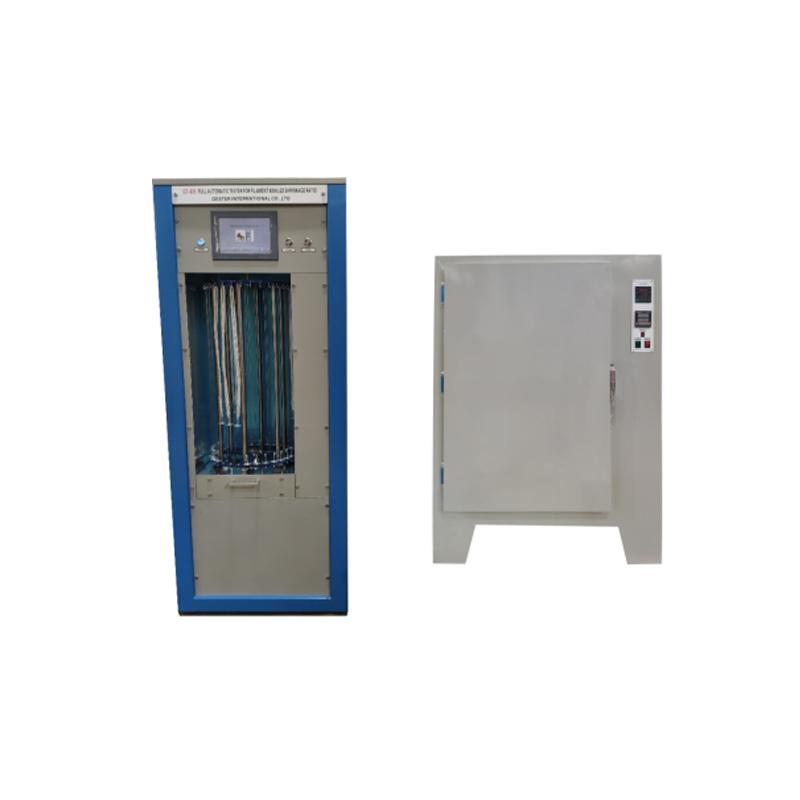

Full Automatic Tester For Filament Kinkled Shrinkage Ratio GT-B25

Product Introduction

Application:

This tester adopt computer control system, used to determine the curl contraction and boiling water shrinkage of deformation silk (polyester, nylon, polypropylene) . The test process has automatic variable load, automatic load, automatic timing, automatic length measurement and automatic zero function. Automatically calculate & print test result.

Key Specifications

Model	GT-B25
Load Range	2.5-5000cN (Setting Aibitrary, Auto Load)
Accuracy	0.2cN
Specimen Length	1000mm
Length Resolution	0.04mm
Test Index	Crimp Contraction CC(%) Crimp Modulus CM(%) Crimp Stability CS(%) Hot-Shrinkage Rate & Various Index Average Value Standard Deviation CV Value
Display	Screen Display
Max Test Number in a Batch	30pcs
Power Supply & Consumption	220V, 50Hz, 0.5KW
Air Compression	0.4-0.8Mpa
Dimension	1000mm×630mm×1770mm
Standards	GB/T 6506—2017, GB/T6505—2017

Specification of 0ven

Temperature Range	RT～300℃
Timing Range	1s～99h
Inside Dimension	600×570×930mm
Shelf Dimension	4l5×460mm
Heating Consumption	4500W
Blower Motor	40W
Power Supply	AC 380V (three-phase four-wire)
Dimension	1030×8l0×1340mm

Accessories

Standards accessories	1set	Main Machine
	1set	Oven
	1pc	Electronic Scales
	1pc	Test Frame
	1pc	English Operation Software
Optional accessories	1set	Constant Temperature Water Tank for GB/T 6505—2017
	1set	Computer
	1set	Printer
