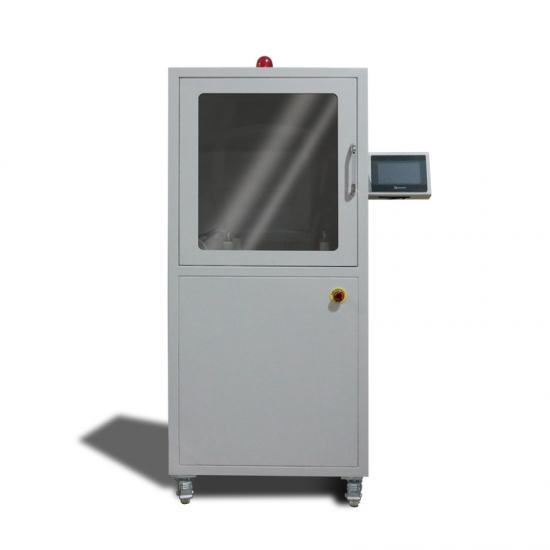

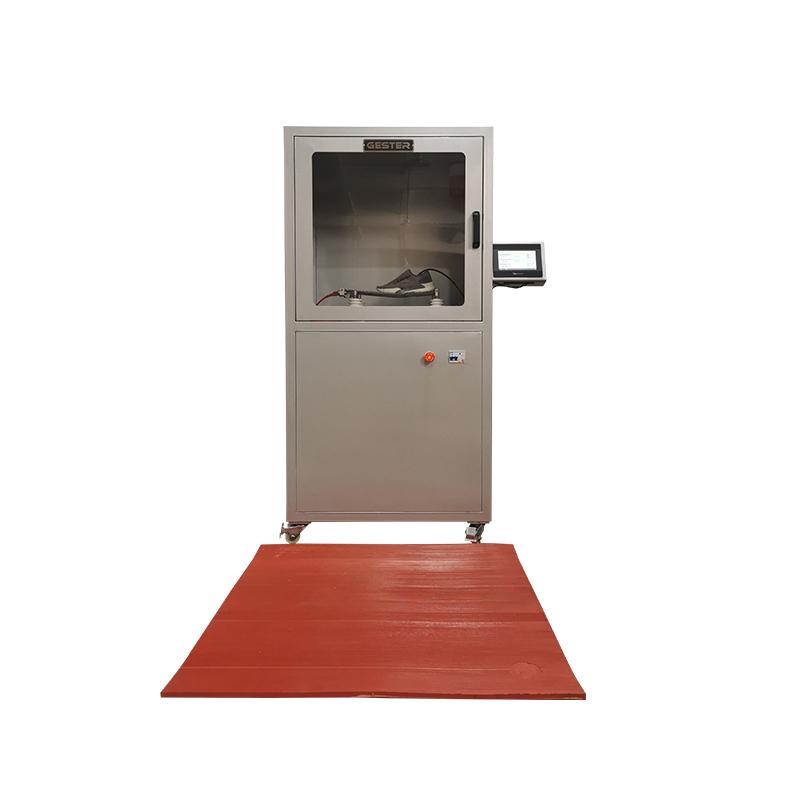

Footwear Electric Shock Resistant Tester GT-KB42

Footwear Electric Shock Resistant Tester is designed to determine dielectric of various insulation shoes.

Brand:
GESTER
Item NO.:
GT-KB42
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
10-30 days

Inquire now

Product Detail

Footwear Electric Shock Resistant Tester GT-KB42

Product Introduction

Application:

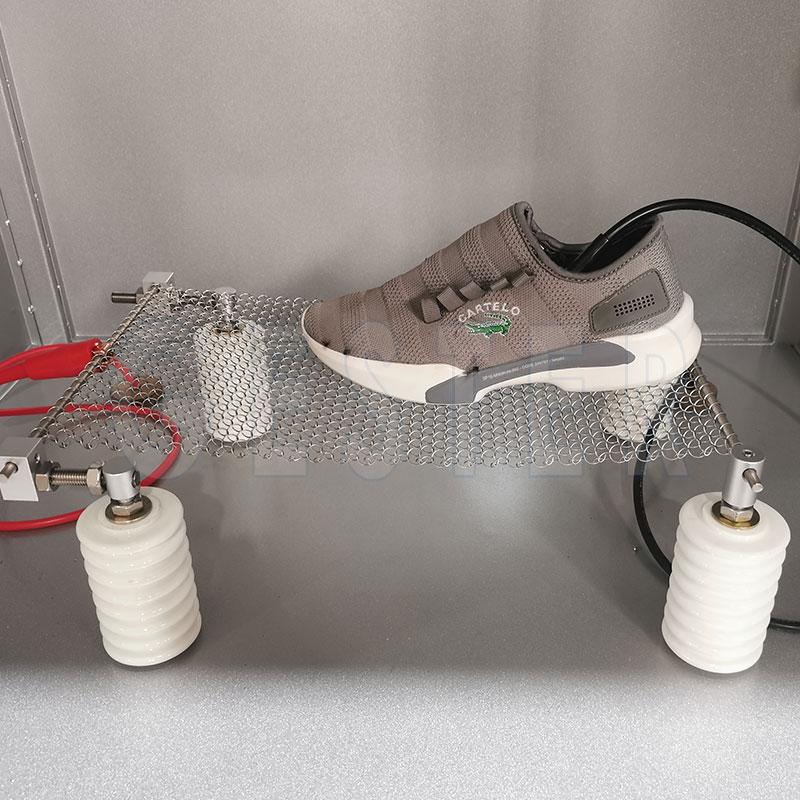

This Footwear Electric Shock Resistant Tester is designed to determine dielectric of various insulation shoes. The current leakage and voltage withstand are measured by applying a voltage at a given frequency to the specimen.

Standards:

ANS-Z41 section 4, CSA-Z195 section 5.4 , AS/NZS 2210.2 section 5.11,

GB12011, GB/T20991 section 5.11, ASTM F2412 section 9, ASTM F2413 section 5.5.

NOM-113-STPS-2009 Section 8.5
ISO 20345, EN 50321

Feature

The current leakage and voltage withstand are measured by applying a voltage at a given frequency to the specimen.

Key Specifications

Model	GT-KB42A	GT-KB42B
Voltage increasing rate	Increasing 1kv/sec,when reaching 75% of set voltage, the speed will switch to 100 v/sec
Output voltage range	AC: 0~20KV	AC: 0~30KV
Leakage current range	AC: 20mA
Transformer capacity	500VA	1000VA
Test time	0.0s～99s
Test space(LDH)	58 x 38 x 54cm
Power supply	1∮AC 220V 50/60HZ
Dimensions (W×D×H）	82cm x 60cm x 76cm
Weight(Approx)	160kg
Standards Accessories	￠3.5mm stainless steel ball 1pack
	35KV insulated gloves 1set
	35KV Insulated pad 1㎡
	Power line 1pc
