Electric Pencil Hardness Tester GT-H100

  • Brand:

    GESTER
  • Item NO.:

    GT-H100
  • Order(MOQ):

    1
  • Lead Time:

    10-30 days
  • Product Detail

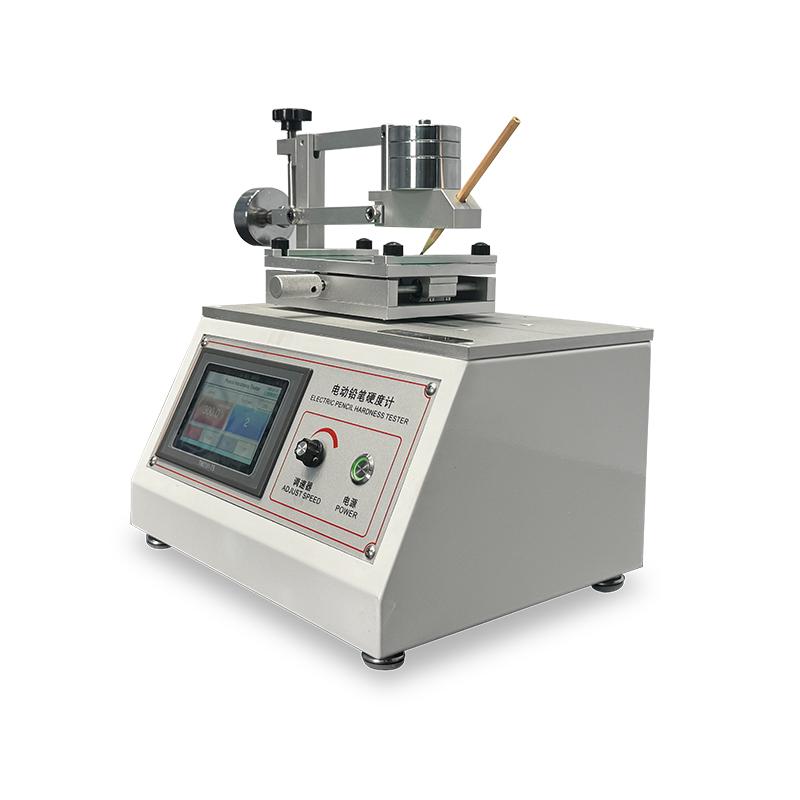

Electric Pencil Hardness Tester GT-H100


Product Introduction

Application:

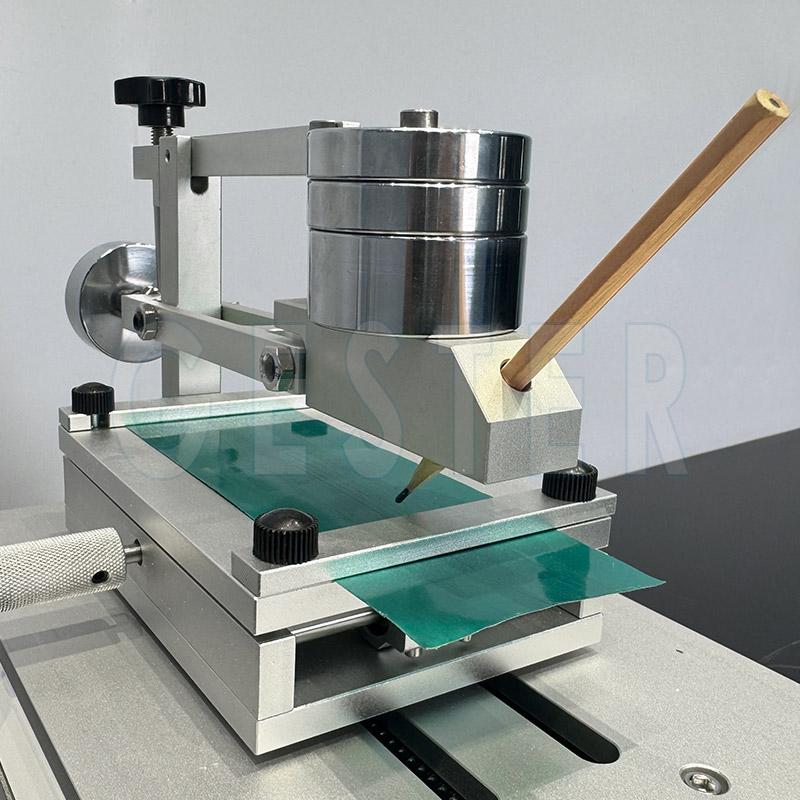

The hardness pencil scratch the surface of the coating film to test the surface hardness of the coating film layer, hardness pencil fixed at an angle of 45º, so that the front end of the pencil center and the surface of the coating film layer in contact with the appropriate load, according to a certain speed (JIS standard 0.5mm / s) to move the test platform so that the surface of the coating film layer moving through the pencil center, the coating film layer will not cause damage (scratch) the softest pencil grade can be considered as the coating film Layer hardness.



Principle

The hardness pencil scratch the surface of the coating film to test the surface hardness of the coating film layer, hardness pencil fixed at an angle of 45º, so that the front end of the pencil center and the surface of the coating film layer in contact with the appropriate load, according to a certain speed (JIS standard 0.5mm / s) to move the test platform so that the surface of the coating film layer moving through the pencil center, the coating film layer will not cause damage (scratch) the softest pencil grade can be considered as the coating film Layer hardness.


Key Specifications


Model

GT-H100

Testing Angle

45 degrees

Load

Adjustable, 500g, 250g

Movement Speed

5mm/sec, adjustable

Stroke Space

40mm

Table

Approx. 12x17cm, can fix the sample

Power Supply

220V / 50Hz

Accessories

Standard Accessories

13pcs

Standard Pencils

Standard Accessories

1Set

Weights
