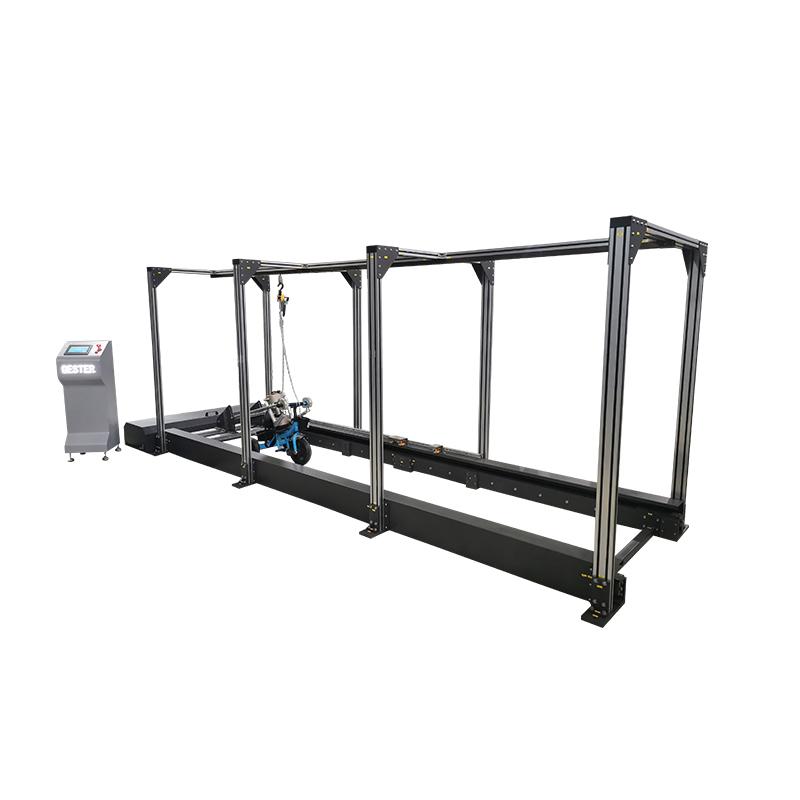

This Dynamic Strength Tester is mainly used to test the dynamic strength of wheeled ride-on toys.
Brand:
GESTERItem NO.:
GT-M19Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
30 daysProduct Detail
|
Application:
This Dynamic Strength Tester is mainly used to test the dynamic strength of wheeled ride-on toys. Can simulate driven toys vertically hit the inelastic step in a steady speed of 2m /S ± 0.2 /S, then observe the damaged condition. Applied to toy bicycles, scooters, roller-skate and etc.
EN71-1 ASTM F963 ISO 8124-1 GB 6675 |
|
Model |
GT-M19 |
|
Control method |

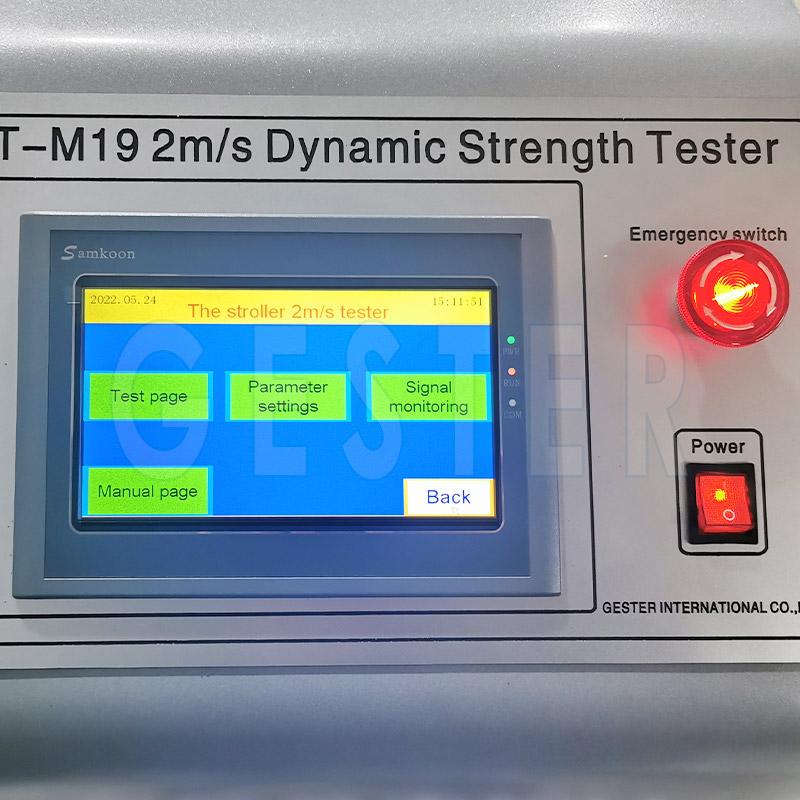

PLC touch screen control |
|
Drive mode |
Motor drive |
|
Test speed |
2m/s |
|
Non-resilient step height |
50mm |
|
Weights protection frame material |
Aluminum profile |
|

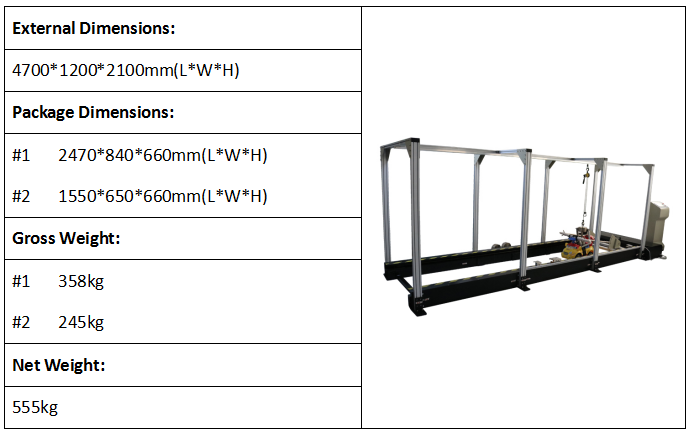

Dimensions |
470x120x210cm |
|
Equipment weight |
555kg |
Accessories
|
Standards accessories |
1set |
|
|
Optional accessories |
Optional |
GT-MA16 Loads for stability test: for ISO 8142-1 section 5.24.4 and GB 6675 section 5.24.4 |
|
Optional |
GT-MA21 Static strength test load for ASTM F963 section 8.20 |
|
|
Optional |
GT-MA20 Test platform block for EN71-1 section 8.22.3.3 and ISO 8124-1 section 5.27.3 |
|
|
Optional |
||
|
Optional |
All kinds of wheeled ride-on toys can be tested on the Dynamic Strength Tester & 2 m/s Tester
