What Is the Purpose of a Thermal Shock Test Chamber ?
A thermal shock test chamber, also known as a temperature shock chamber, is a specialized device used to test the durability and reliability of materials and products under extreme temperature conditions. This article explores the various applications of the thermal shock test chamber, particularly the GT-F56 model, and its significance in modern industrial testing.

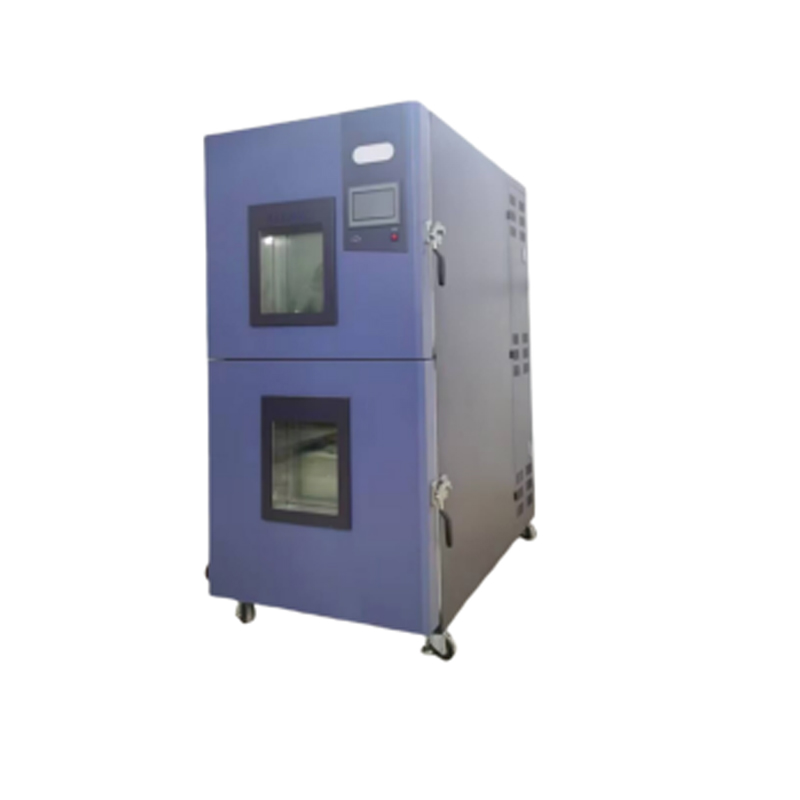

Understanding the Thermal Shock Test Chamber
A thermal shock test chamber is capable of simulating rapid temperature changes and is widely used in testing various materials and products. The device can quickly switch temperatures from extremely high to extremely low, or vice versa, to evaluate the physical and chemical changes in materials. These tests are crucial for understanding how materials behave during thermal expansion and contraction, as well as predicting their performance in real-world applications.
Thermal shock chamber Working Principle
The thermal shock test chamber achieves rapid temperature changes through its internal high-temperature and low-temperature zones. Test samples quickly alternate between these zones, simulating an environment of extreme temperature fluctuations through multiple cycles. The thermal shock test chamber is equipped with advanced temperature control systems and fast-responding heating and cooling systems to ensure precise and stable temperature transitions.
Thermal shock chamber Key Components
1. Heat Preservation Enclosure:
-
Outer wall material: cold-rolled steel sheet with stoving varnish.
-
Inner wall material: stainless steel plate SUS304.
-
Body heat preservation material: rigid polyurethane foam and glass fiber.
-
Door heat preservation material: glass fiber.
-
Air Conditioning Channel: Fan, heater, evaporator, air door, and temperature sensor.
2. Standard Configuration of Chamber Body: A lead drilling hole on the left surface, φ50mm round hole.
3. Load Capacity of thermal shock test chamber Basket: Two sample baskets, each with a 5kg load capacity (uniform distribution).
4. Adjusting Foot and Wheel: Four adjusting feet for support and four adjusting wheels for mobility.
5. Thermal Shock Testing Machine Door: Single door, left hinge, right handle.
6. Circulating Fan:
-
High-temperature/ambient temperature exposure: 3φ, 400W, centrifugal.
-
Low-temperature exposure: 3φ, 400W, centrifugal.
-
Control Panel: Controller display screen, failure indicator, hour meter, R232 interface, over-temperature protection setting device, and main power switch.
7. Thermal Shock Test Machine Room: Refrigeration unit, drainage device, exhaust fan.
8. Power Distribution Control Cabinet: Main power leakage circuit breaker, controller, power distribution board, cooling fan, high and low-temperature recirculating fan motor.
9. Heater: Nickel-chromium alloy strip heater.
10. Heater Control Mode: Non-contacting periodic pulse width, SSR (solid-state relay).
11. Power Line and Drain Hole: Located at the back of the chamber.
Main Applications of Thermal Shock Test Chambers
1. Metal Materials
Temperature changes are a common issue in the production and use of metal materials. Thermal shock test chambers help manufacturers evaluate the performance of metals under extreme temperatures, ensuring their reliability in various environmental conditions. For instance, metal components used in aerospace and automotive industries need to maintain structural integrity under harsh temperature conditions. Through thermal shock testing, manufacturers can verify the fatigue resistance and thermal stability of metal materials, preventing cracks and fractures caused by thermal expansion and stress.
2. Plastics and Rubber
Plastics and rubber materials exhibit different characteristics at different temperatures. Thermal shock tests allow manufacturers to understand how these materials react to rapid temperature changes, leading to improved formulations and enhanced durability and performance. This is especially important in fields such as electronics, household appliances, and medical devices. Thermal shock testing also helps assess the thermal aging performance of plastics and rubber, ensuring their stability and safety during prolonged use.
3. Electronic Components
Electronic components experience temperature fluctuations during operation, which can affect their performance and lifespan. Thermal shock test chambers simulate these temperature changes, helping engineers identify potential failure points, optimize designs, and improve product reliability and stability. For example, semiconductor devices and printed circuit boards (PCBs) are typically tested for performance under temperature variations. Thermal shock testing can verify the soldering quality and electrical performance of electronic components, reducing electrical failures and short circuits caused by temperature changes.
4. Composite Materials
Composite materials are widely used in aerospace, automotive, and construction industries. These materials are usually composed of different types of materials, making their behavior under temperature changes complex. Thermal shock test chambers help engineers understand parameters such as the coefficient of thermal expansion and interlayer bonding strength of composite materials, optimizing their design and application. Performance in thermal shock tests can assist researchers in improving the structural design of composite materials, enhancing their performance and reliability in extreme environments.
Prohibited Uses of Thermal Shock Test Chambers
Despite their powerful functions, there are certain prohibited uses of thermal shock test chambers to ensure the safety of the equipment and operators:
-
Do not test or store flammable, explosive, or volatile substances.
-
Do not test or store corrosive substances.
-
Do not test or store biological samples.
-
Do not test or store sources of strong electromagnetic radiation.
The Importance of Thermal Shock Testing
Thermal shock testing is crucial for product development and quality control. By simulating extreme temperature changes, potential issues in materials and products can be identified in advance, preventing safety hazards and economic losses caused by material failure. For example, in the automotive industry, thermal shock testing ensures the reliability of engine components in high and low-temperature environments, improving vehicle performance and safety. In the electronics industry, thermal shock testing verifies the reliability of electronic products under temperature fluctuations, preventing performance degradation and failures caused by thermal stress.
Additionally, thermal shock testing is widely used in medical devices, aerospace, and building materials. Ensuring stable operation in extreme environments through thermal shock tests guarantees safety and performance in these critical fields. For instance, aerospace equipment and medical devices may experience extreme temperature changes during use. Thermal shock tests can simulate these conditions, verifying their reliability and safety in actual applications.
In summary, thermal shock test chambers are indispensable in modern industrial testing. They help engineers and manufacturers understand the performance of materials and products under extreme temperature conditions, ensuring their reliability and safety in various environments. Proper application of thermal shock testing can improve product quality, enhance market competitiveness, and bring greater commercial value to enterprises. As technology continues to advance and application fields expand, thermal shock test chambers will continue to play an important role in driving innovation and development across various industries.
