How to Use Single Wing Falling Tester GT-LC05-1 ? November 14 , 2023
How to Use Single Wing Falling Tester GT-LC05-1 ?


Introduction:

In the realm of quality assurance for luggage and packaging, the Single Wing Falling Tester GT-LC05-1 stands out as an indispensable tool. This cutting-edge device ensures that luggage can withstand the rigors of travel, providing valuable insights into its durability. In this detailed guide, we will explore the step-by-step procedures to effectively use the Single Wing Package Drop Tester, shedding light on its significance in the realm of luggage testing.


Single Wing Package Drop Tester


I. Preliminary Setup:

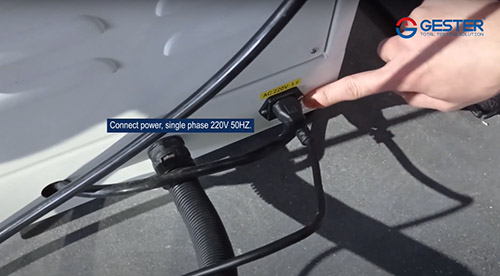

1. Power Connection:
Begin by connecting the device to a single-phase 220V 50HZ power source.

2. Compressed Air Setup:
Connect compressed air to the oil-water separator, a crucial step in ensuring the smooth functioning of the Luggage Drop & Falling Tester.

3. Pressure Adjustment:
Observe the pressure gauge and adjust it to the recommended range of 0.5-0.6MPa for optimal testing conditions.

4. Emergency Stop Release:

Turn on the device and release the emergency stop knob to prepare it for Single Wing Free Falling testing operations.


Luggage Drop & Falling Tester

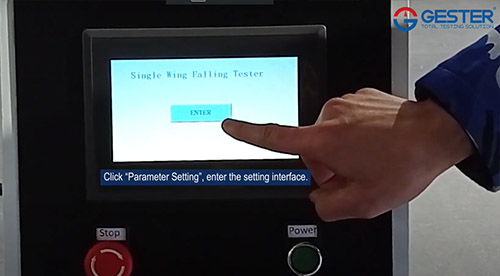

II. Parameter Setting:

1. Height Configuration:
Access the "Parameter Setting" and set the desired test height. Click "Test Page" to return to the Test Interface.

2. Alignment Check:
Click "Return" and carefully observe whether the drop arm aligns parallel to the bottom plate.

3. Height Adjustment:
Utilize the "Up" or "Down" buttons to ensure that the drop arm corresponds to the preset testing height.


Single Wing Package Drop Tester

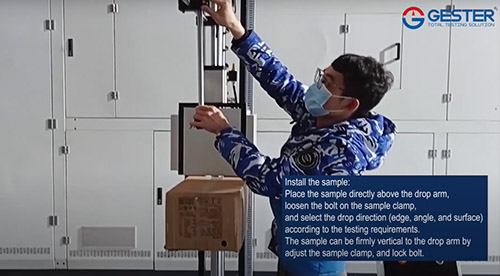

III. Sample Installation:

1. Proper Placement:
Install the sample directly above the drop arm. Loosen the bolt on the sample clamp and select the drop direction (edge, angle, or surface) based on testing requirements.

2. Secure Fastening:

Adjust the sample clamp to firmly position the sample vertically on the drop arm. Secure it in place by tightening the lock bolt.


Single Wing Package Drop Tester

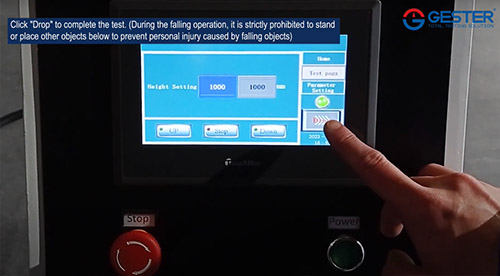

IV. Initiating the Test:

Click "Drop" to commence the testing process. It is crucial to note that during the falling operation, standing or placing objects below is strictly prohibited to prevent potential injuries caused by falling objects.

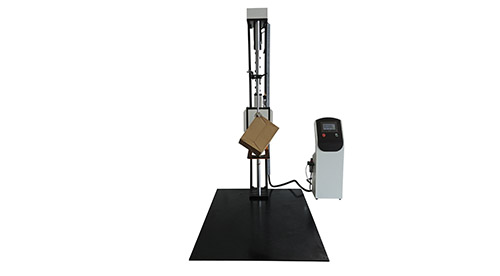

Single Wing Free Falling Testing Machine


Conclusion:


The Single Wing Falling Tester GT-LC05-1 stands as a critical tool in the assessment of packaging robustness and impact resistance. By following this comprehensive guide, users can navigate the operational intricacies, ensuring accurate and reliable results. Mastery of this Single Wing Free Falling Testing Machine not only safeguards product integrity but also contributes to the enhancement of overall quality control standards in the realm of transportation and logistics.
