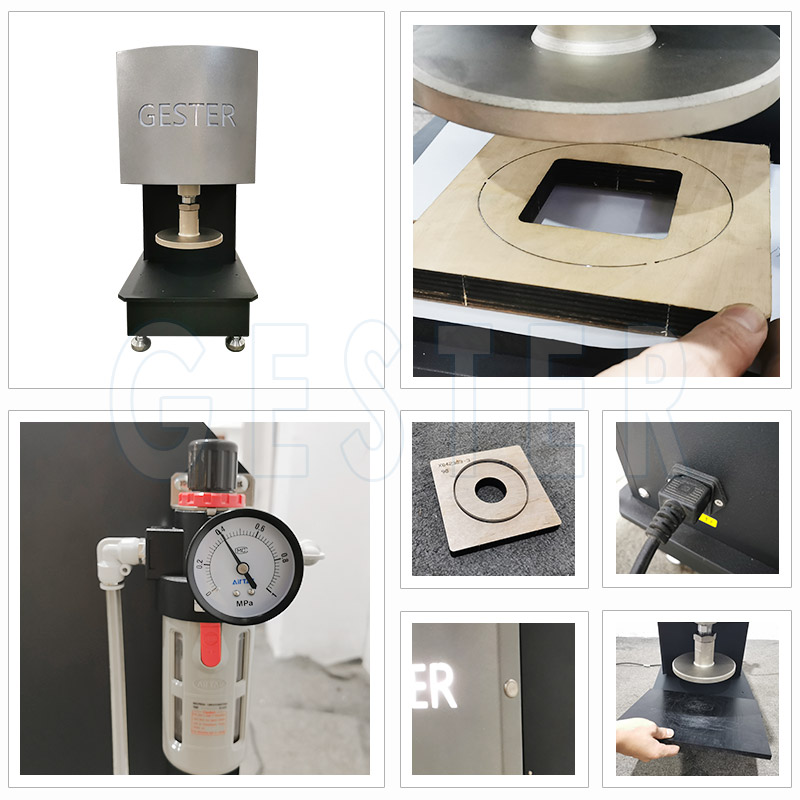

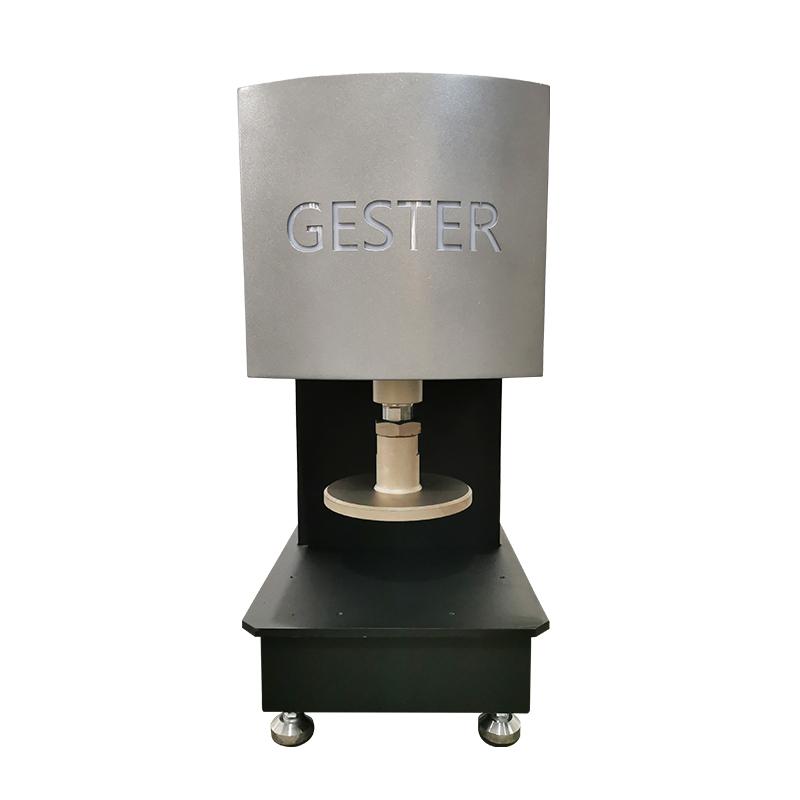

Pneumatic Sample Press GT-C48-2

Sample pneumatic compression machine, a new type of desktop compression machine, equipped with 125 mm gas cylinder.

  • Brand:

    GESTER
  • Item NO.:

    GT-C48-2
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

Pneumatic Sample Press GT-C48-2


Product Introduction

Application:

Sample pneumatic compression machine, a new type of desktop compression machine, equipped with 125 mm gas cylinder, Cutting thickness of 10mm. Under the pressure of 100psi can produce 2000kg pressure, equipped with a double bond security operation. Can be requested to provide special shape die.  Laboratory standards require the use of air compressor.


Pneumatic Sample Cutting Press Standards:

ASTM D3776,D2646, D4966,BS 3424/2471, BS EN 12127, EN 344-1 M&S P65/65A, ISO 20344,

ISO 5470-2, ISO 3801, AS/NZS 2210.2, GB/T 20991, SATRA TM31



Pneumatic textile sample cutter Key Specifications


Model

GT-C48-2

Control mode

Pneumatic control

Max. cutting pressure

2000Kg

Diameter of platen

30cm

Air pressure

4kg/cm2

Power supply

AC220V±10% 50/60Hz

Dimensions

510 x 390 x 630mm

Weight

94kg

Standards

ASTM D3776,D2646, D4966,

BS 3424/2471, BS EN 12127, EN 344-1

M&S P65/65A, ISO 20344, ISO 5470-2, ISO 3801,

AS/NZS 2210.2 , GB/T 20991,SATRA TM31

Standard accessories

Round cutting die 100cm²   1pc

Power Line    1pc

Optional accessories

Round cutting die: Φ38mm

Round cutting die: Φ44mm

Round cutting die: Φ90mm

Round cutting die: Φ140mm

Round cutting die: Φ165mm

Rectangle cutting die:4×10CM

Rectangle cutting die:5×15CM

Can customize special cutting die
