Test Method of Carpet Inflammability Tester GT-F06 By Details Aug 10, 2022
Test Method of Carpet Inflammability Tester GT-F06 By Details


1. Range of application

Carpet Flammability Testing Machine is suitable to determine the surface flammability of carpets and rugs when exposed to a standard small source of ignition under carefully prescribed draft protected conditions.

2. Carpet Burning Testing Machine Mainly Structure
1. Observation board: It is convenient to check the test in the test box.
2. Bottom thermal baffle: to place the specimen.
3. Tablet method cover plate: cover the specimen surface when testing.
4. Auxiliary means: Urotropine tablet Dia. 6mm, 150mg/pc.

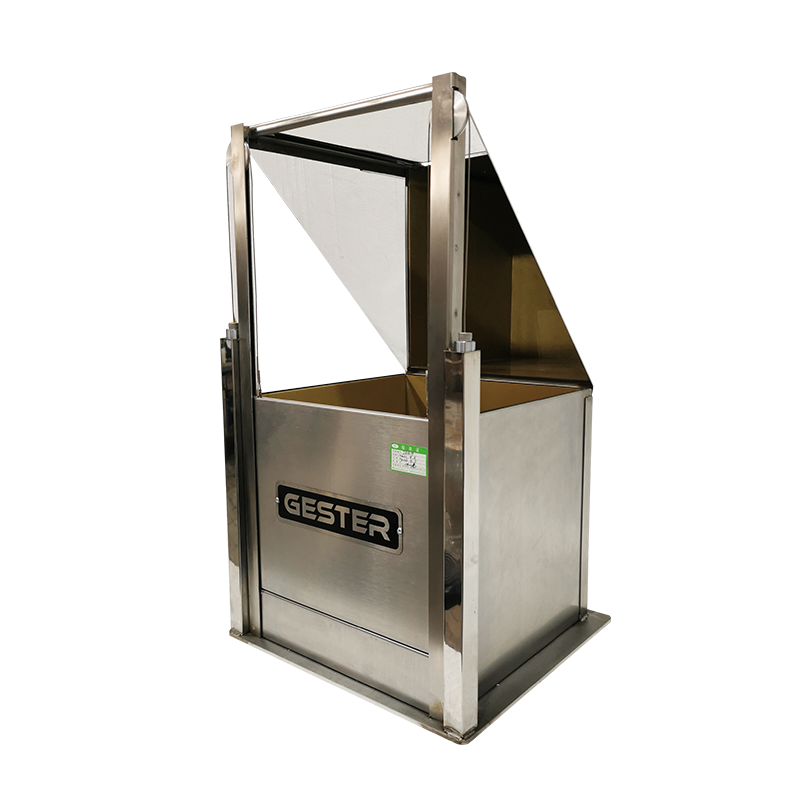

Carpet Inflammability Tester GT-F06


3. Floor Coverings Material Flammability Tester Principle
Tablet method: make the specimen in a horizontal position exposed to small ignition sources (under the action of hexamine / urotropine tablet) , and measure the damage length and flame spread time after test.

4. Flammability Testing For Carpet Operating steps
4.1 Make the machine placed stably before testing.
4.2 Specimen Installation:
4.2.1Take a piece of specimen after humidifying, for the pile fabric specimen, please brush the pile in the inverse direction until it is upright.

4.2.2  Place the specimen on the center of the floor of the test chamber. traffic surface up, exercising care that the specimen is horizontal and flat.


Carpet Inflammability Tester GT-F06

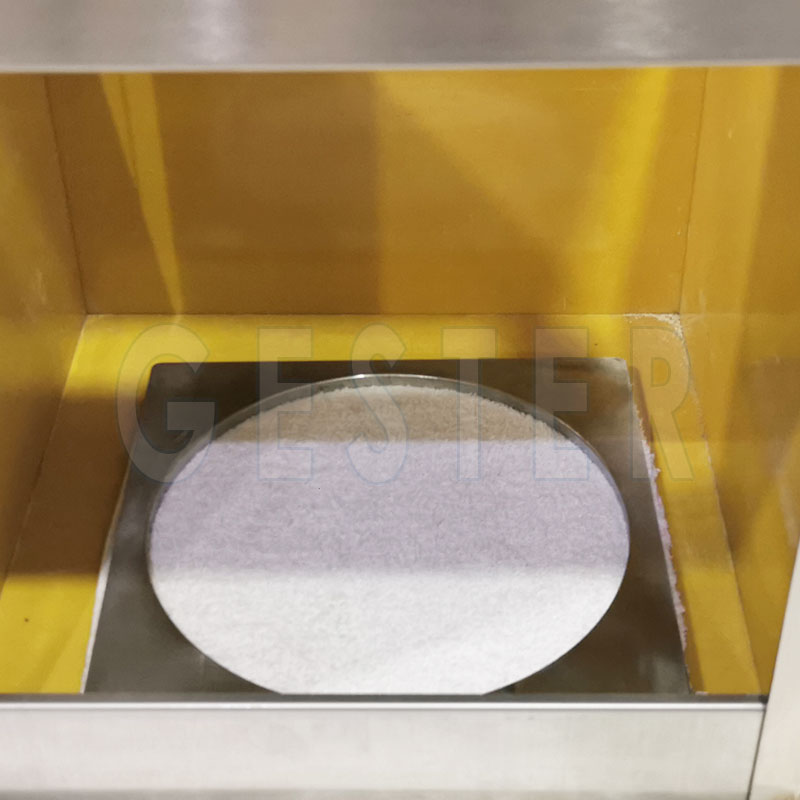

4.3 Open the Carpet Flammability Test chamber door, place the specimen on the center of the floor of the testchamber, laying an urotropin(e) tablet in the center of specimen surface. Ignite thetablet and close the door."
4.4 May check the buring through observation board, when sample stop burning,open the chamber door, measure and record the burning range.

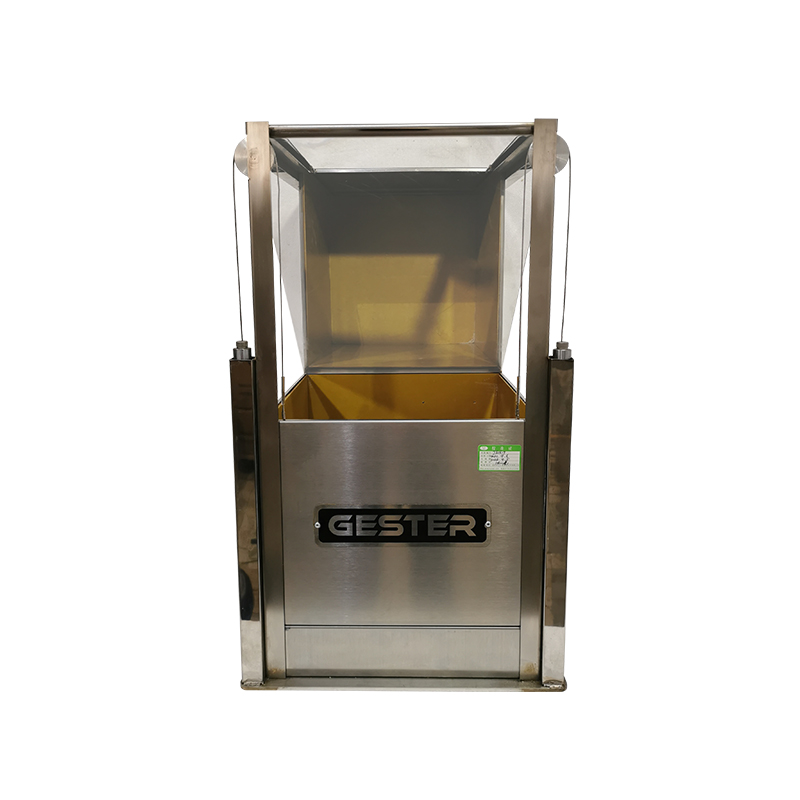

Carpet Inflammability Tester GT-F06
