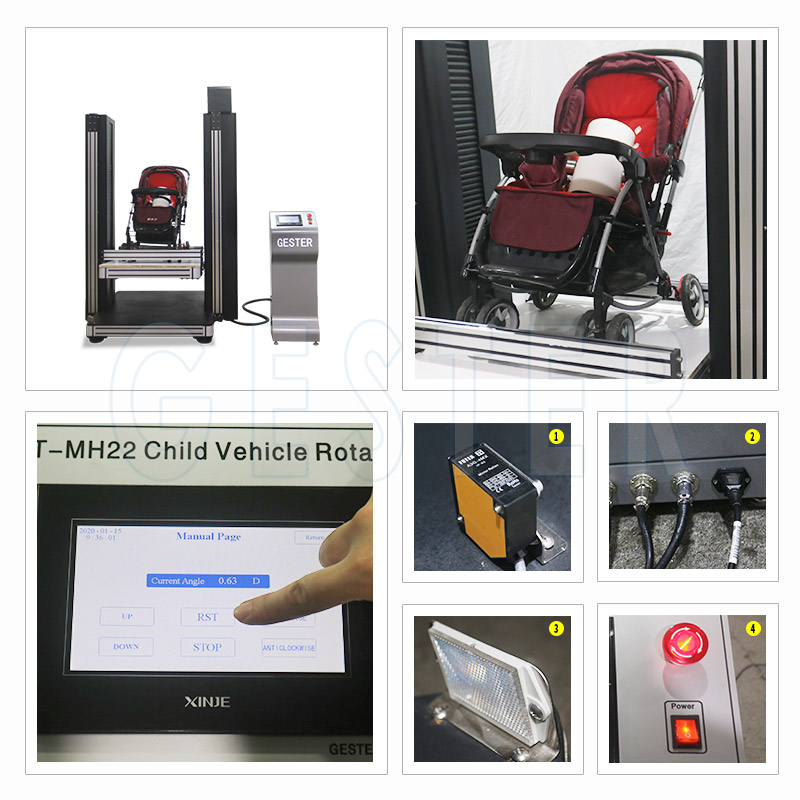

The baby stroller rotation tester is used to measure the locking strength and durability of the connection device of the test object after the stroller is tilted at a certain angle under a certain restraint weight.

Baby Stroller Rotation Testing Machine Feature:

1.The test platform with wheel axle fixing device.

2.The test platform can rotate clockwise and counter clockwise.

3.Automatic judgment of specimen damage, automatic stop working.

4.Programmable control rotation angle, test frequency, cycle test, spacing interval

5.Can autosave when interruption of power supply, can choose to stop or continue to work

6.High precision angle sensor, can display table angle in real time.

Baby Stroller Testing Machine Rotating Test Satndards:

EN 1888-2012 Section8.1.3.2.1 ,8.10.2, GB 14748-2006 Section 5.15

The operation method of the GESTER Child Vehicle Rotating Tester:

1.Put the weight on the seat of vehicles and fix it with the rope, so the weight won’t fall down during the test.

2.Turn on the power supply, lower the rotate platform to the lowest position at manual interface. Put the vehicle on the platform and fix the vehicle by rope too.

3.Lift the vehicle to the highest position, and start the test according to different test mode.
