Comprehensive Overview of GT-N09 Edge Crush Tester Specifications and Features Oct 20, 2023
Comprehensive Overview of GT-N09 Edge Crush Tester Specifications and Features



Table of Contents:
-Introduction
-Edge Crush Testing Equipment  Technical Specifications
-Edge Crush Test Machine Standards Compliance
-Crush Tester Machine Key Features
-Conclusion


Introduction


In the world of paper and packaging, precision and reliability are paramount. The GT-N09 Crush Tester Machine is a remarkable piece of equipment meticulously designed to meet the demands of modern industry standards and ensure the quality of corrugated boxes. In this article, we will delve into the technical specifications and functionalities of the Edge Crush Test Machine , providing valuable insights for manufacturers and quality control professionals.

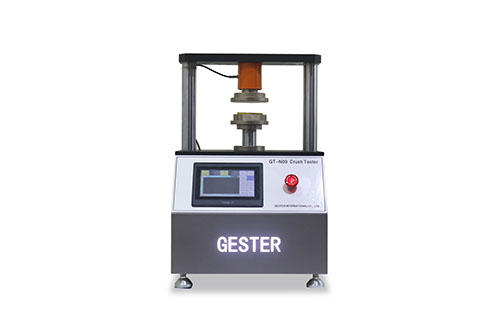

Crush Tester Machine


1. Edge Crush Testing Equipment  Technical Specifications

The GT-N09 Crush Tester Machine is stands out as an upper pressure plate fixed type machine, offering high precision. This exceptional Edge Crush Testing Equipment is versatile, catering to a range of essential tests including:

-Ring Crush Test (RCT)
-Edge Crush Test (ECT)
-Flat Crush Test (FCT)
-Pin Adhesion Test (PAT)
-Concora Medium Test (CMT) - Optional Testing Methods

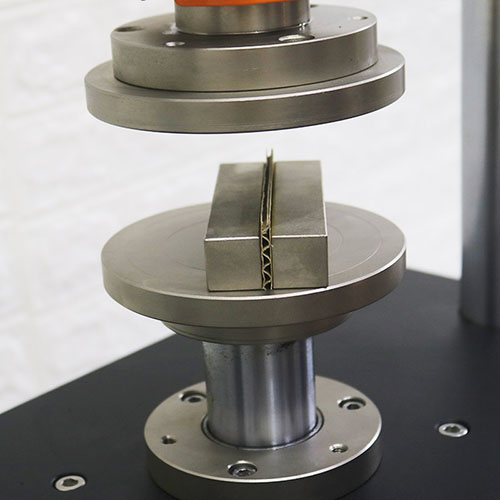

Edge Crush Test Machine

Edge Crush Testing Equipment


2. Edge Crush Test Machine Standards Compliance

The GT-N09 adheres to numerous international and industry standards, ensuring that your paper and packaging materials meet global quality requirements. The applicable standards include:

ISO 3035, ISO 3037, ISO 7263, TAPPI-T472, TAPPI T811, TAPPI T822, TAPPI T838, JIS-P8126, GB/T 2679.8, GB/T 6546, GB/T 6548 ,GB/T 2679.6


Edge Crush Testing Equipment

Edge Crush Test Machine


3. Crush Tester Machine Key Features

  • High-Speed Return: The Edge Crush Testing Equipment excels in efficiency, swiftly returning to its initial position after completing a test. This feature ensures a smooth testing process and minimizes downtime.


  • Servo-Controlled Step Motor: The RCT Ring Crush Tester employs an imported step motor with servo control, ensuring precision and accuracy in test procedures. This motor guarantees that the applied force is controlled with finesse.


  • Automatic Data Handling: The Edge Crush Tester Machine  is equipped with advanced data management capabilities. Test results can be automatically measured, statistically analyzed, and printed. The data can also be stored for future reference, simplifying quality control and record-keeping.

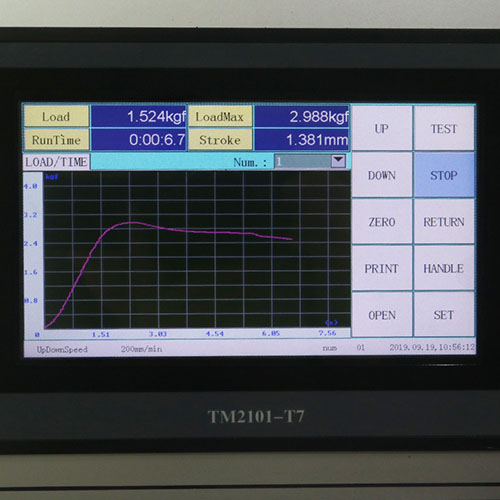

  • Real-Time Data Display: The Edge Crush Tester Machine boasts a blue color LCD display, providing real-time information on the crush time and loading force. Notably, the Crush Testing Machine can also display crush graphs in real-time, allowing for immediate insights into the testing process.


  • Thermal Printer: In addition to its advanced display, the Ring Crush Tester comes with a high-speed, noise-free thermal printer. This feature ensures that test results are readily available in a clear and organized format.


  • Integration of Mechanical and Electrical Design: The Ring Crush Tester exemplifies the concept of mechanical and electrical integration. Its design is compact, visually appealing, and, importantly, requires minimal maintenance. This innovative approach streamlines the operation and upkeep of the machine.


Edge Crush Tester Machine

RCT Ring Crush Tester


Conclusion

The GT-N09 Crush Tester Machine for Corrugated Boxes is a testament to modern engineering and precision testing. Designed to meet and exceed international standards, it provides invaluable data for quality control in the paper and packaging industry. Its exceptional features, including real-time data display and automated data handling, make it an indispensable tool for manufacturers and quality control professionals.
