Comprehensive Guide of Choosing the Martindale Abrasion Resistance Tester GT-C13B Jul 20, 2024

Comprehensive Guide of Choosing the Martindale Abrasion Resistance Tester

In the textile and leather industries, abrasion resistance and pilling resistance are crucial indicators of material quality and durability. The martindale sbrasion tesistance tester is renowned for its precision and reliability, making it a popular choice in laboratories and quality control departments worldwide. This guide delves into the applications, standards, and unique features of the martindale sbrasion tesistance tester, providing a comprehensive overview to help you make an informed decision.


Applications of the Martindale Tester

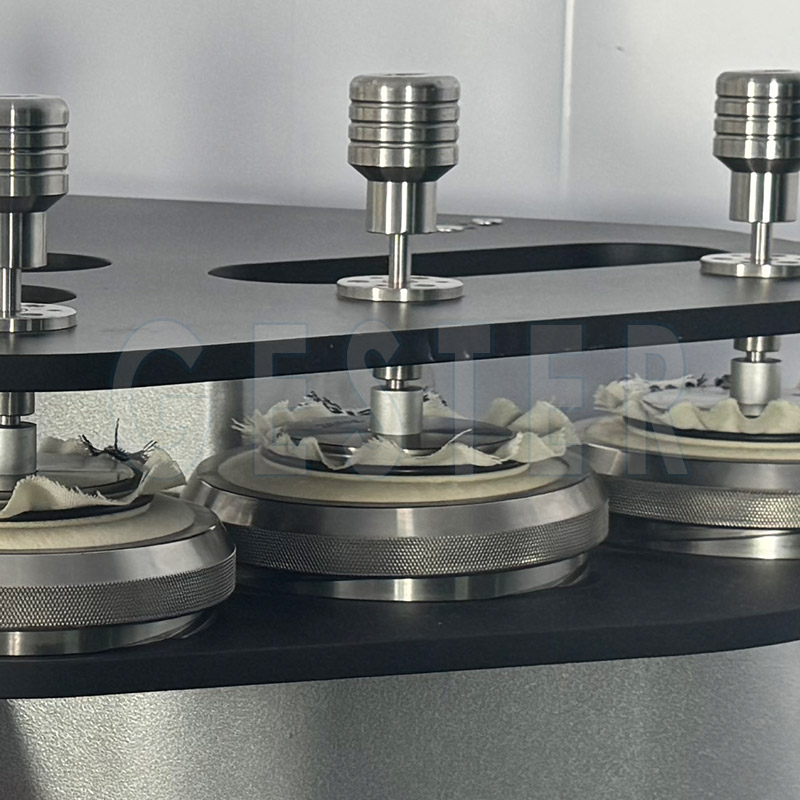

The martindale sbrasion tesistance tester is the standard method for assessing the wear resistance and pilling tendency of textiles and leather. During the test, samples are rubbed against known abradents under low pressure, with the rubbing direction continuously changing. The degree of abrasion or pilling is then compared against standard parameters. This testing method is versatile, suitable for a wide range of materials, including textiles, socks, leather, coated upholstery, carpets, wood, and shirt collars. Through this process, materials can be accurately evaluated for their performance in real-world use, providing reliable data for research and quality control.

Available Models

The martindale sbrasion tesistance tester comes in four models, equipped with 4, 6, 8, and 9 abrading tables, respectively, to meet various testing needs. This flexibility makes it an ideal choice for laboratories and quality control departments, enabling efficient testing of diverse samples. Whether for small-scale experiments or large-scale testing, users can select the appropriate model based on their specific requirements, ensuring the precision and reliability of the tests.

Martindale Abrasion Testing Standards

The martindale sbrasion tesistance tester adheres to multiple international and national standards for abrasion and pilling testing:

Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, IWS TM 112, M&S P19, Next 18, SN 198529, TWC 112, JIS L1096 (ISO17076-2 ball plate method, optional)

Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M&S P17, Next TM26, SN 198525


These standards ensure the reliability and comparability of test results, making the martindale sbrasion tesistance tester widely applicable in global quality control and research. By adhering to these standards, users can guarantee that their test results are internationally recognized and authoritative, providing robust assurance of product quality.

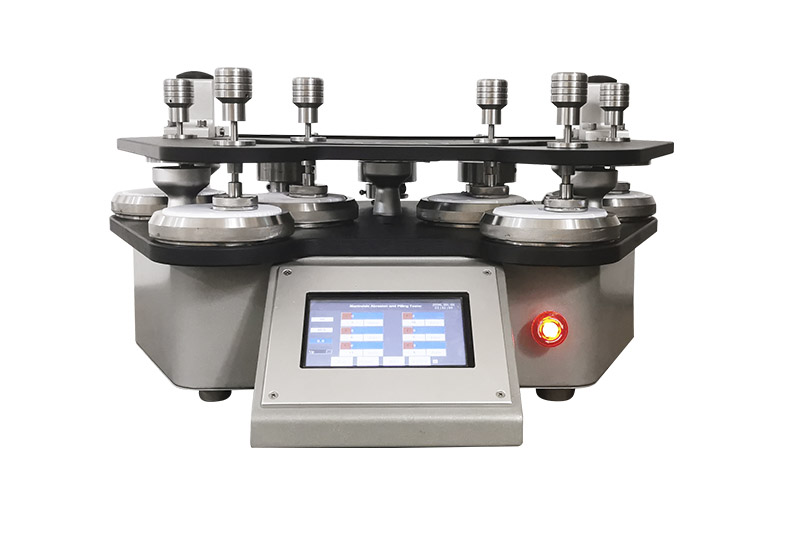

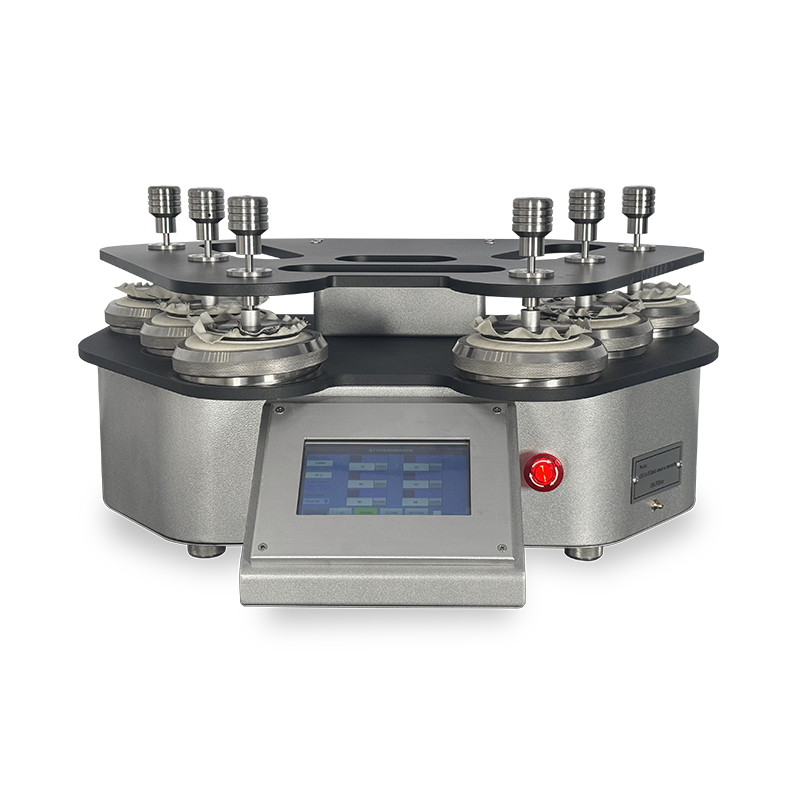

Features of the Martindale Tester GT-C13B


The martindale sbrasion tesistance tester boasts several outstanding features that set it apart in abrasion and pilling testing:

1. Testing Standard: Utilizes Lissajous figures for precise results.
2. Working Positions: Offers options with 4, 6, 8, or 9 abrading tables to meet various testing needs.
3. Counting Methods: Supports both count-up and count-down modes for ease of operation.
4. Unique Design: Allows individual sample holders to be removed without lifting the top motion plate, facilitating examination.
5. Standard Sample Holders: Includes weights of 9 and 12 kpa to ensure consistent testing.
6.User Interface: Equipped with a PLC and a 7-inch color touch screen with both Chinese and English interfaces, ensuring user-friendly operation.
7. Material and Durability: Key components are made of stainless steel, offering robust construction and long-lasting durability.

8. Anti-Deformation Design: The top motion plate is specially made from 316 aluminum alloy to prevent distortion, ensuring long-term stability.


These features give the martindale sbrasion tesistance tester a significant advantage over similar products, enhancing test accuracy and reliability while improving user experience and equipment durability.


Usage Guide

When selecting the appropriate martindale sbrasion tesistance tester model, consider the following:

1. Testing Needs: Choose the number of working positions (4, 6, 8, or 9) based on your specific testing requirements.
2. Testing Standards: Ensure the equipment complies with the necessary international and national standards for authoritative test results.
3. Ease of Operation: Opt for models with a user-friendly interface and easy maintenance to enhance testing efficiency.
4. Durability: Select models with robust construction and high durability to extend the equipment's service life.


When operating the martindale sbrasion tesistance tester, follow the equipment manual strictly to ensure the testing process is standardized and the results are accurate. Regular maintenance and calibration of the equipment are essential to ensure its long-term stable performance.

The martindale sbrasion tesistance tester, with its precise testing capabilities and diverse application scenarios, is an indispensable tool in the textile and leather industries. This comprehensive guide helps you better understand and choose the right martindale sbrasion tesistance tester model, safeguarding your product quality.

Choosing the martindale sbrasion tesistance tester means opting for reliability and precision. Whether in research or quality control, the martindale sbrasion tesistance tester will be your trusted partner.
