Enhance Yarn Strength Testing Efficiency: GT-A01 Single-Yarn Strength Tester July 02 , 2024
Enhance Yarn Strength Testing Efficiency: GT-A01 Single-Yarn Strength Tester

In the modern textile industry, the strength and elongation of yarns are critical performance indicators. The GT-A01 Single-Yarn Strength Tester is a high-precision instrument designed specifically to measure the breaking strength and elongation of single yarns. It is suitable for quality testing of various yarns. This article will provide an in-depth look at the application scenarios, main features, installation and operation methods, and the significance of this device in textile testing.

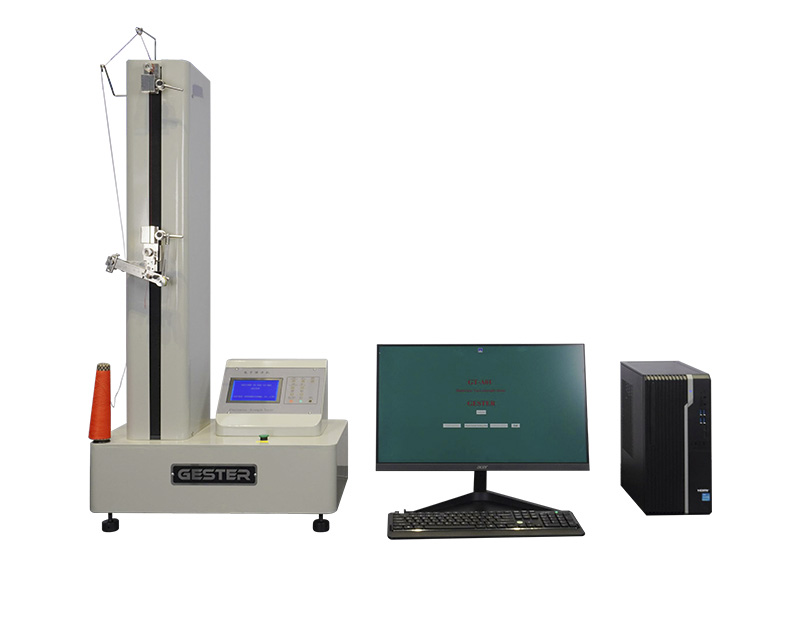

Single Yarn Strength Tester

Application


The GT-A01 Single-Yarn Strength Tester is primarily used to determine the breaking strength and elongation of single yarns, accurately measuring breaking load and extension within the range of 5000 centi-grams force. The device features electronic operation combined with mechanical action and is equipped with scales of 0-500cg force and 0-5000cg force, with the extension scale graduated in millimeters and as a percentage of the standard test length (500mm). This device is ideal for textile testing laboratories and quality control departments of manufacturing enterprises.

Main Features


The GT-A01 Single Yarn Strength Tester boasts the following prominent features:

1. Dynamic Data Sampling Frequency Over 800Hz: High-frequency sampling ensures peak value capture, providing the most accurate representation of textile material properties.
2. Sharp Blue LCD Panel: The operator simply selects the required test module and standard, with each button's graphical icon clearly illustrating its current function. This greatly simplifies the screen by only displaying commands relevant to the current task.
3. High-Performance MCU and A/D Converter: Equipped with Mitsubishi 16-bit MCU and A/D converter, offering excellent anti-interference performance and rapid data transfer.
4. Real-Time Data Display: Ongoing test data (e.g., mean square value, average, max, min, etc.) is displayed in real-time.
5. Multiple Force Unit Switching: The force unit can be freely switched between N, Kgf, 1b, in, and cN.
6. Comprehensive Report and Diagram Handling: Test reports and diagrams can be processed by a computer and printed out.
7. Bidirectional Control: Operators can use the LCD control panel to operate the unit and print testing data without a PC.
8. Data Export and Analysis: Data can be exported to Excel for detailed analysis, and data curves can be overlaid for comparison.

Installation and Operation

Leveling
Use a spirit level to check the levelness of the four corners of the machine, and use a spanner to adjust any uneven corners.

Installation Steps
1. Connect the data cable, confirm the power supply is AC220V, plug in the power cable, and turn on the power switch.
2. Turn on the computer and open the testing software.

Operation Steps
1. Click "Enter new test" and input the relevant test information and parameters.
2. Click "Next Step" to enter the testing interface. The lower fixture will automatically search for the gauge distance.
3. Install the sample: Refer to the following steps to install the sample and select the appropriate tension weight based on yarn density.
4. Click "Start" or press the green "START" button to begin the test. 5. After the test is completed, the results will be displayed. Repeat the test multiple times using the same method.
6. Observe the data for each test in the "Single test data" section of the software.
7. Click "Statistical value" to process the data.
8. Click "Data Saving" in the statistics interface to save the data.
9. Click "Printing" to export the PDF report file.
10. Click "Browsing" to review historical data.

Note
The control panel test is for demonstration purposes only and is not recommended because the data needs to be printed on a specified printer.

The GT-A01 Yarn Tensile Strength Tester, with its high precision and efficiency, along with its user-friendly interface and extensive functionality, provides a powerful solution for yarn performance testing in textile enterprises. With comprehensive and accurate test data, this device helps companies improve yarn quality control, ensuring product stability and consistency, thereby gaining a competitive edge in the market.

Choose the ISO2062 Single Yarn Testing Machine to make your textile testing more precise and efficient!
