James Slip Resistance Property Tester GT-KB36

James Slip Resistance Property Tester is used determine the dry static coefficient of friction of shoe sole and the heel materials.

Brand:
GESTER
Item NO.:
GT-KB36
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
10-30 days

Inquire now

Product Detail

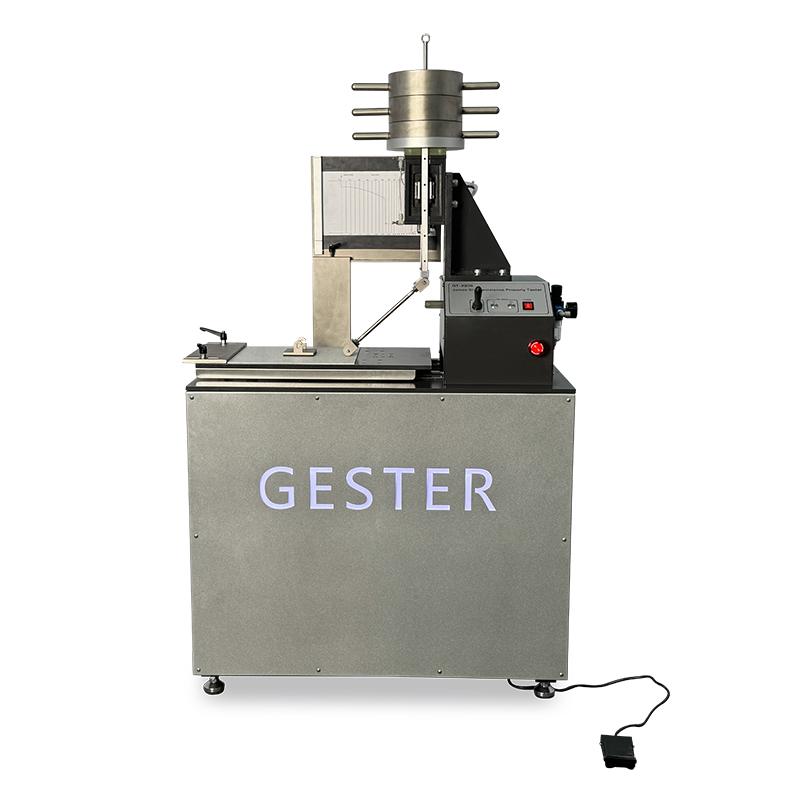

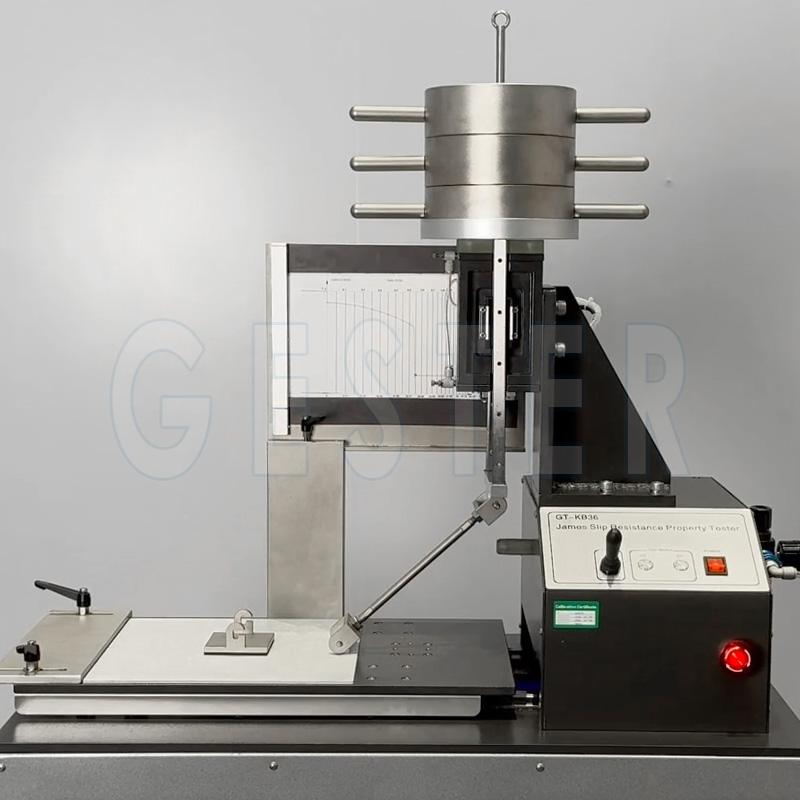

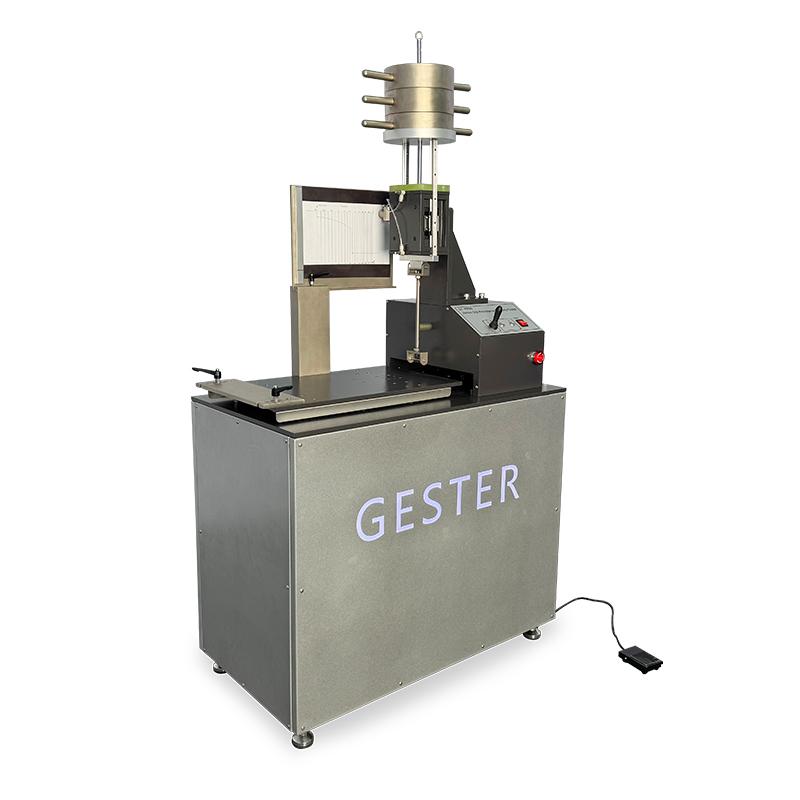

James Slip Resistance Property Tester GT-KB36

Product Introduction

Application:

This James Slip Resistance Tester is used determine the dry static coefficient of friction of shoe sole and the heel materials. Under the specified load on a controlled walking surface, calculate its tangent and perpendicular forces to get the static coefficient of the friction.

Standards:
ASTM F489, ASTM D2047

Dimensions

Key Specifications

Weight	25 lb x 3 pieces
Weight supporter	5 lb
Speed of test table	1``/ sec(25.4mm/sec)

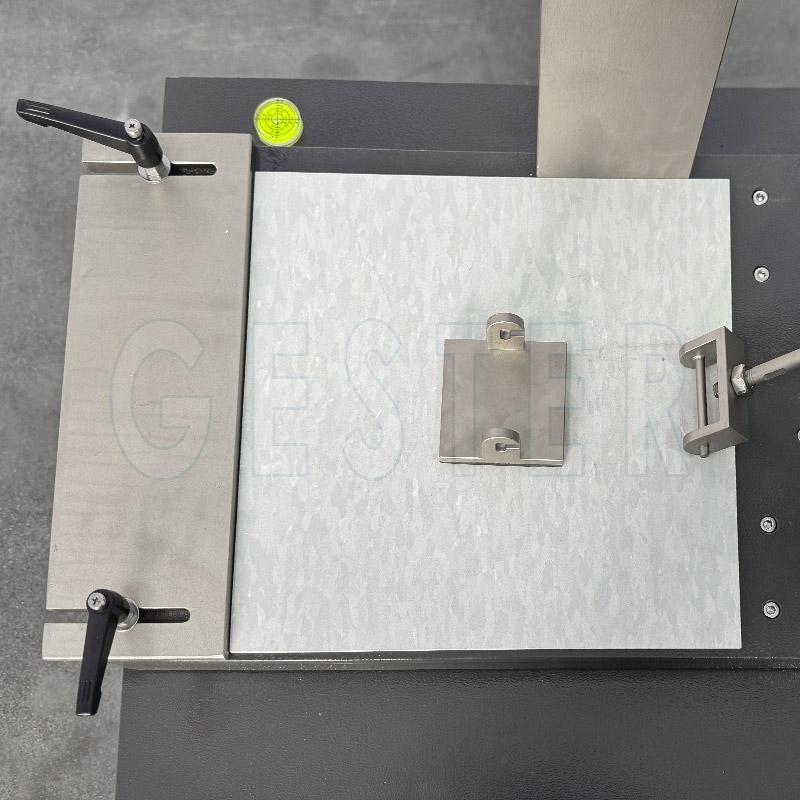

Area of test table	12`` x 12`` (305 x 305 mm)
Specimen (L x W x T)	3``x 3``x 0.25` ( 76 x 76 x 6.4 mm)
Power supply	1∮AC 220V 50/60HZ
Dimensions (W x D x H)	102 x 52 x 180 cm
Weight	150 kg
Standards	ASTM F489, ASTM D2047

James Slip Resistance Property Tester

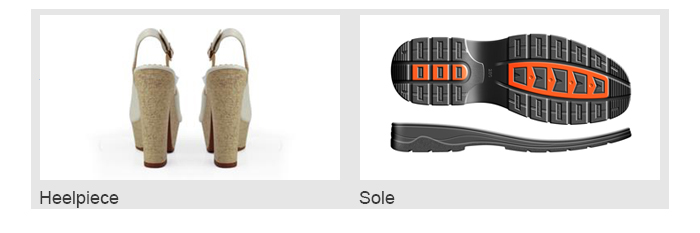

Application Industry

All the material blow can be tested on the Slip Resistance Property Tester
