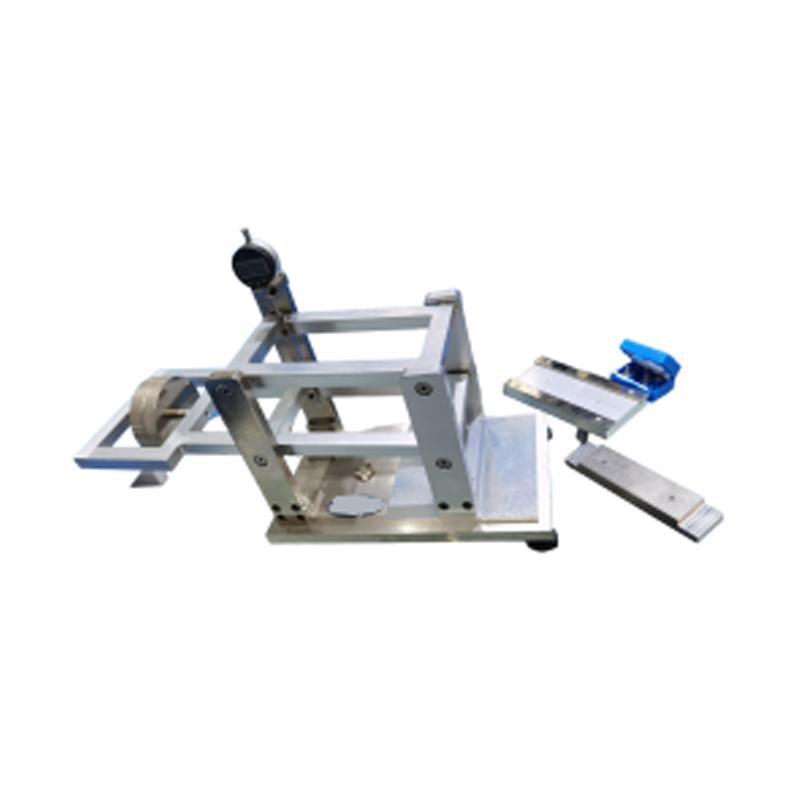

Fluffy Fabric Thickness Gauge GT-CN14B

Model

GT-CN14B

Measurement range

Thickness m: 0.1~150 (mm)

Resolution

0.01 millimeters, Accuracy: 0.01 (mm)

Foot area

1000020000040000 (mm²)

Compression time

10 seconds, 30 seconds

Foot pressing area

10000mm2

20000mm2

40000mm2

Weights

20.4±0.51g

40.8±1.02g

81.6±2.04g

Foot pressing speed

When the pressing time is 10 seconds, it is about 2.1 times per minute

When the pressing time is 30 seconds later, it is about 1.2 times per minute

Weight

About 35KGS

Dimension

635mm x 230mm x 435mm
