Universal Testing Machine for Footwear (Dual Column) GT-K01

Universal Testing Machine (Dual Column) For Shoes is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes ,rubber, plastic, leather, metal, nylon line, fabric, paper

  • Brand:

    GESTER
  • Item NO.:

    GT-K01
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30 days
  • Product Detail

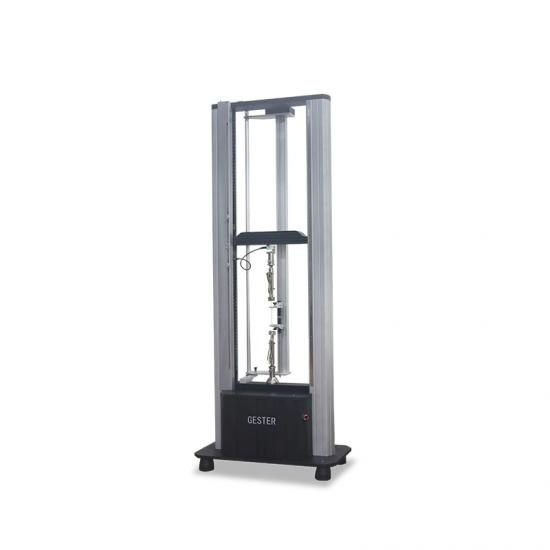

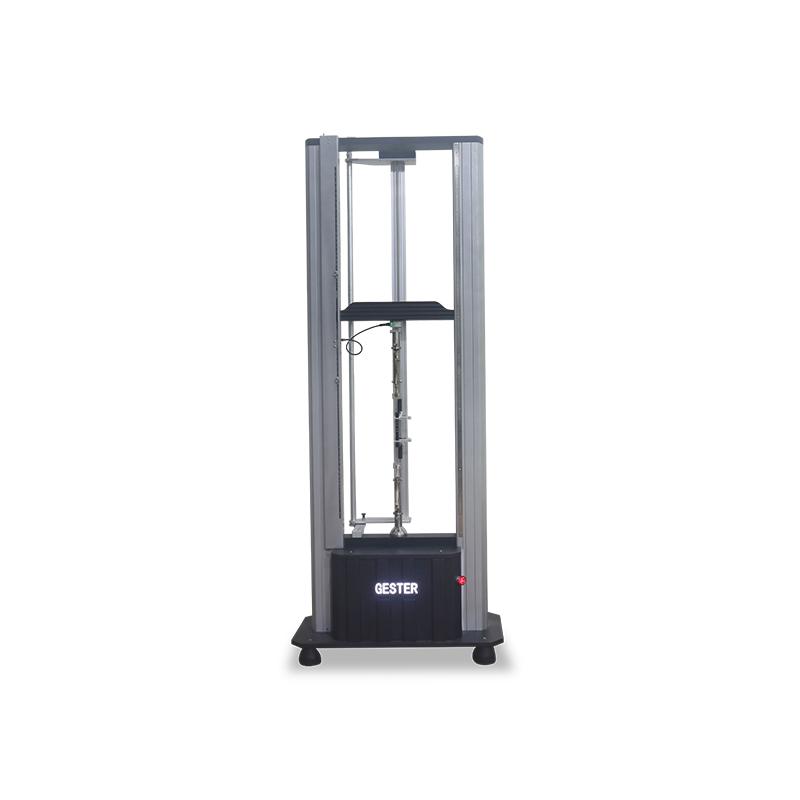

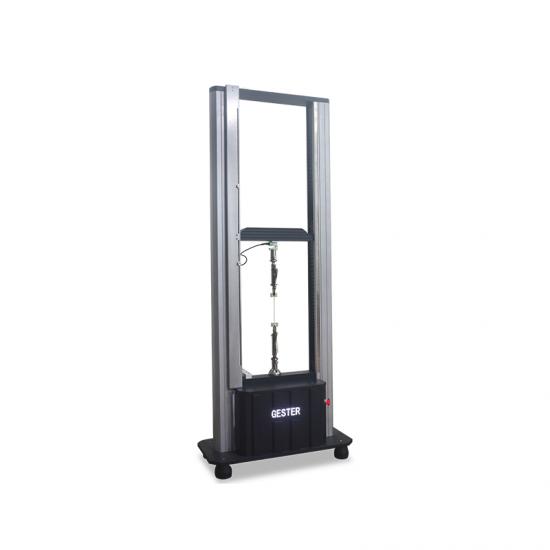

Universal Testing Machine (Dual Column) GT-K01




Product Introduction

Application:

This universal tensile tester is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes ,rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.


Standards:

SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411, TM 410,

 ASTMD 751/2209 /412/624/3512 FIA 1206,

 BS 5131- 3.7, 5.11, 5.13 , BS 5131-2.6

ISO 22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO 20867, ISO 19957, ISO 20874, ISO 20344-5.2.4, ISO 20345-5.3.1.2, ISO 17698, ISO 20875, ISO 22777, ISO 22776, ISO 22654, ISO 20863, ISO 20876, ISO 17695, ISO 17697, ISO34-1, ISO36, ISO37, ISO 17708, ISO 17696, ISO 17706, ISO 22650

AS/NZS 2210.2-5.2.4

DIN 53331,

GB/T 3903.8, GB/T 3903.9, GB/T3903.14 ,GB/T3903.20, GB/T3903.21, GB/T3903.22, GB/T 3903.23 , GB/T 3903.24, GB/T 3903.25, GB/T 3903.26, GB/T 3903.29, GB/T3903.32,GB/T 3903.39,GB/T 3903.40, GB/T 3903.43, GB/T 4689.20, GB/T20991-5.2.4, GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T11413, GB/T21396

QB/T 2711, QB/T2675, QB/T2883, QB/T4118, QB/T4198

HG/T 2726, HG/T 2877, HG/T4805



Feature

1.The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.

2.Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.

2.The speed control range: 0.001-500mm or 0.001-1000mm/min ( option)

3.The Universal Tensile Testing Machine intermediate plate adjustment is both fast coarse and slow fine-tuning.

4.It will return to original site and save automatically ater testing.

5.Data transmission mode: RS232 transmission.

6. This Universal Testing Machine can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.

7. Testing space: test width is 400 mm (standard)

8. All plate walking space: 1200 mm (excluding fixture, according to the customer requirements).

9. The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy

10.Universal Tensile Testing Machine Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.

11.Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic breakpoint stop function.

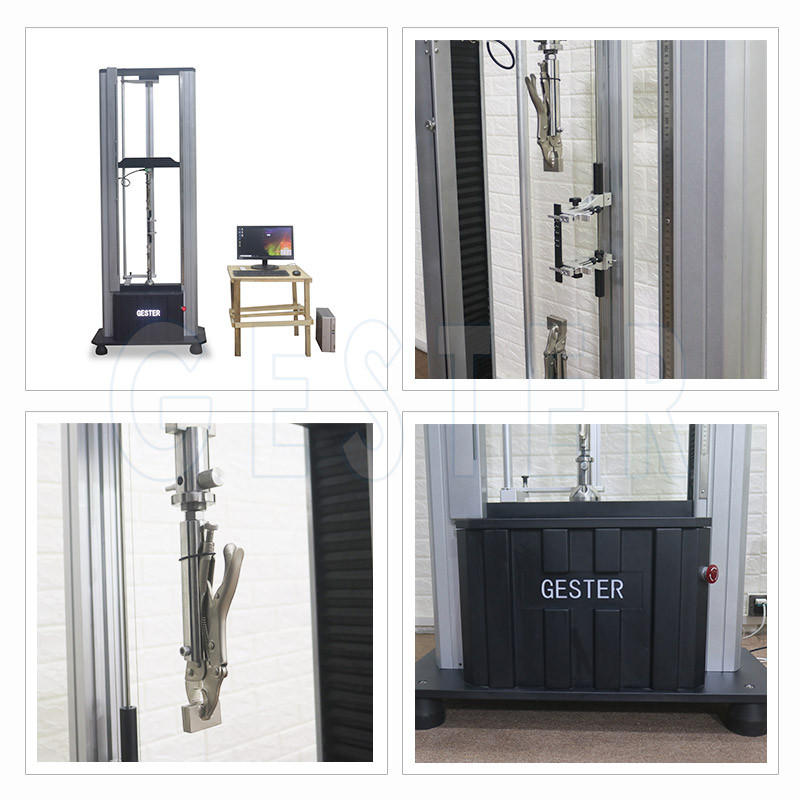

Universal Testing Machine (Dual Column) GT-K01


Universal Tensile Testing Machine Key Specifications


Model

GT-K01

Max. Capacity

5KN,10KN, 20KN

Display

Computer display mode

Force Resolution

1/100,000

Force Accuracy

≤+/-0.5%

Stroke Resolution

0.001 mm

Extensometer Resolution

0.001 mm

Test Speed

0.001-1000mm/min

Walking space

1400mm (it can be custom-tailor according to their requirements)

Force Unit Switch

Kgf, N, Ibf, g, ton, Mpa

Stop Mode

Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Power Supply

AC 220V 50/60HZ 10A

Dimensions

110cm x 70cm x 240cm(WxDxH)

Weight

370kg


Standards accessories

1set

Manual grips

1pc

English operation software

1pc

Cable connect with PC

1set

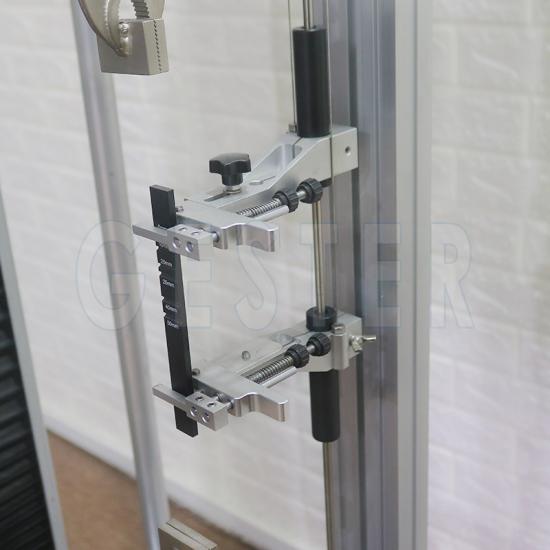

Extensometer

Option accessories

Optional

Desk Top Computer

Optional

Other grips

Application Industry

All kinds of materials can be tested on the Universal Testing Machine (Dual Column)

Tensile Testing Machine for Footwear
