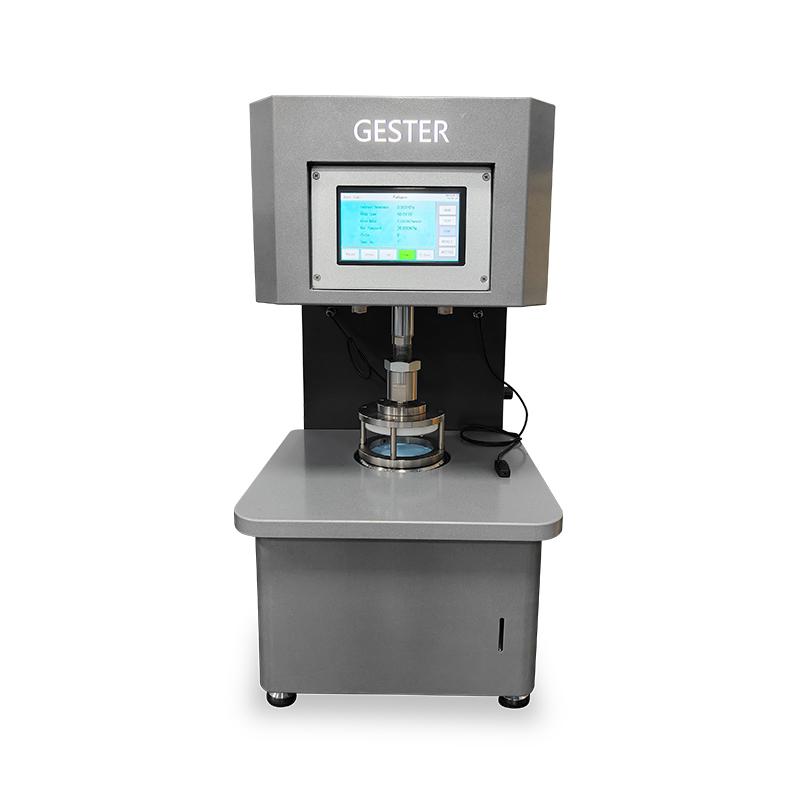

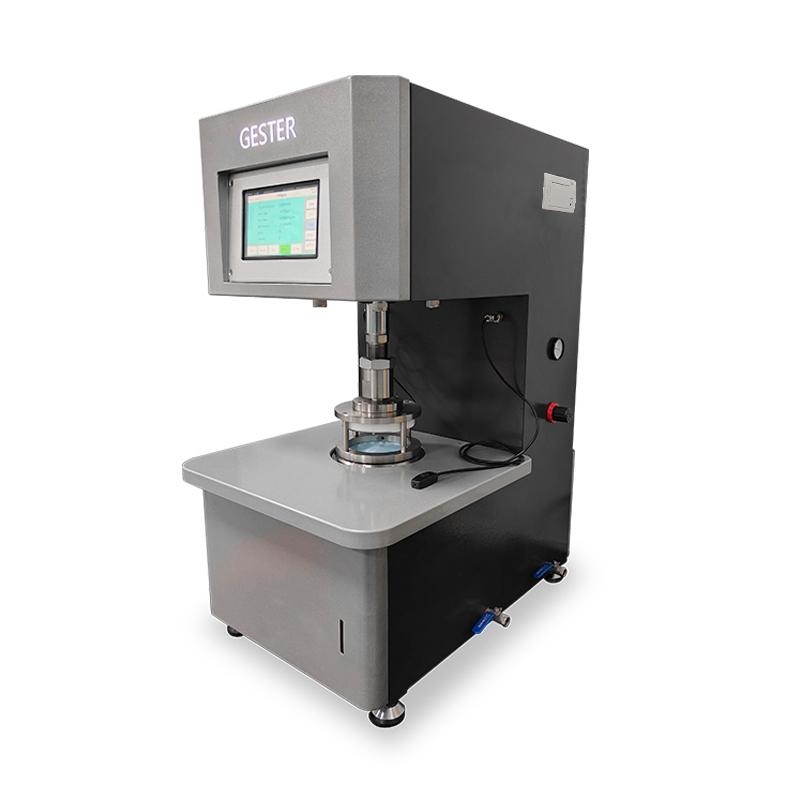

High pressure-servo Hydrostatic Pressure Test Equipment GT-C26B

High pressure-servo Hydrostatic Pressure Test Equipment 20 years R & D sales experience, Perfect after-sales service.
  • Brand:

    GESTER
  • Item NO.:

    GT-C26B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Product Origin:

    China
  • Shipping Port:

    China Port
  • Lead Time:

    30 Days
  • Product Detail

High pressure-servo Hydrostatic Head Tester GT-C26B



Product Introduction of hudrostatic testing equipment

Application for hydrostatic head tester:

High pressure-servo Fabric Hydrostatic Head Pressure Test Machine is used to test the waterproof properties of fabric through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile.


Standards for hydrostatic head tester:

AATCC 127 Option 2, ISO 811, ISO 1420, GB/T 4744, GB/T 9082,

FZT 01004, DIN 53886, EN 20811, EN 13726-3, EN 1734, BS 2823, WSP 80.6,

JIS L1092-7.1.1 Method A, JIS L1092-7.1.2 Method B (require at lest 500kpa)


Feature of Fabric Hydrostatic Head Pressure Tester



1. The pressure using dynamic feedback regulation effectively prevent pressure overshoot.

2. Taiwan DELTA servo motor and drive system, 16-bit A/D conversion.

3. Hydrostatic head tester -whole machine with aluminum alloy structure.

4. Sensor protection: automatic overload protection ( automatic switching of multi-sensor range).


Key Specifications of Fabric Hydrostatic Head Pressure Tester



Model

GT-C26B-1

GT-C26B-2

GT-C26B-3

Testing range

200kpa

500kpa

1000kpa

Pressure resolution

1 /1000

Accuracy

≤1%

Control mode

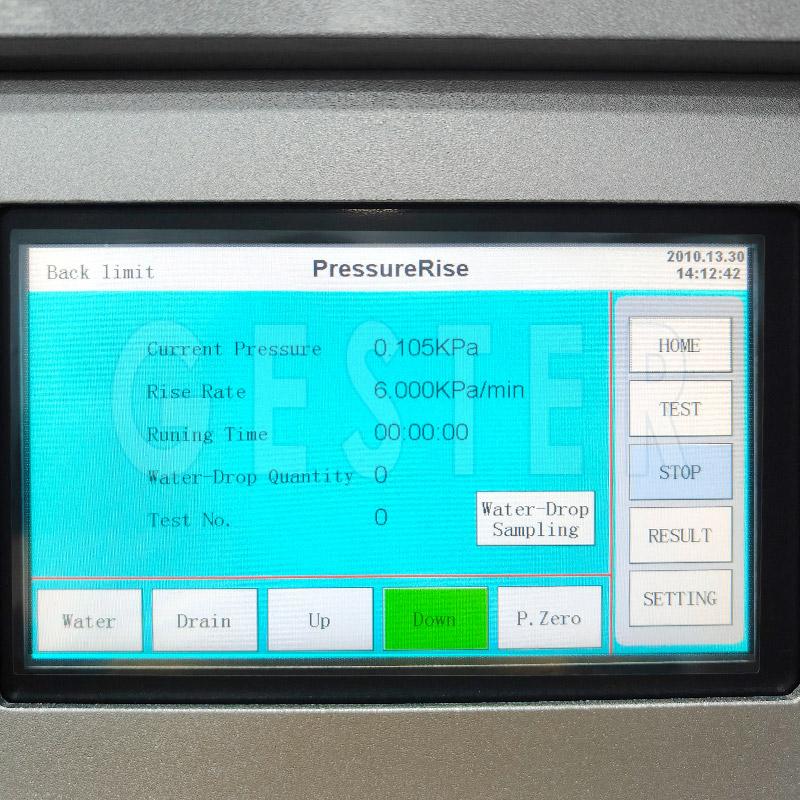

Touch screen control+PC Control

Clamping method

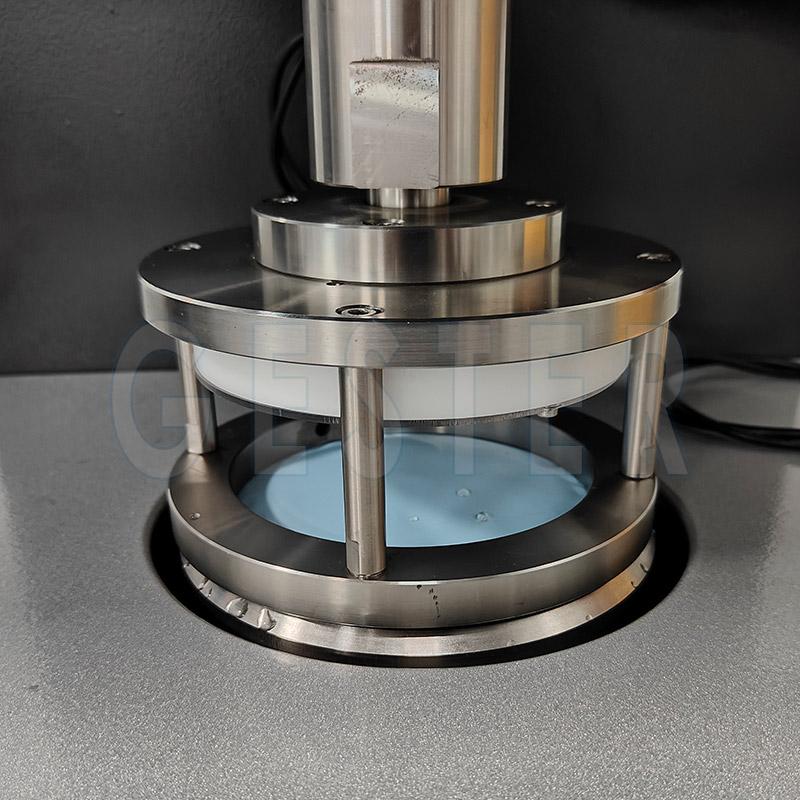

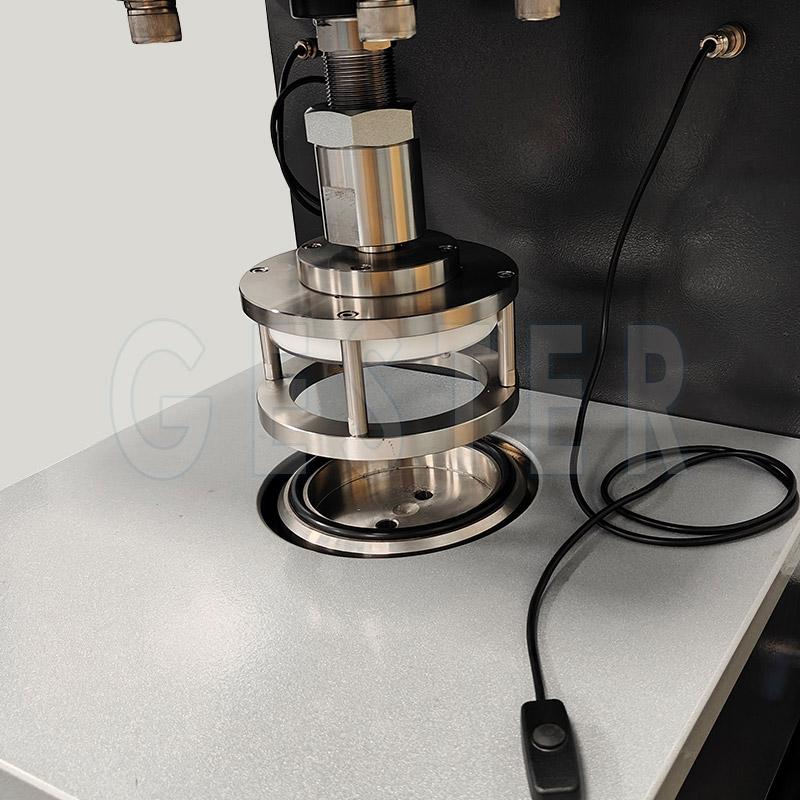

Pneumatic clamping

5 Testing modes

1) P. Rise

2) Const P & Timing

3) Const P & Time

4) Water Penetration

5) Fatigue

Specimen area

100cm²

Testing unit

KPa, PSI, mmH2O, cmH2O, mbar, mmHg

Pneumatic clamping load

0-30000N (stepless adjustable)

Pressurized speed

0.01Pa to 100KPa/min (stepless adjustable)

Power supply

AC 220V 50/60HZ

Dimensions

420x580x700mm (L x W x H)

Weight

60 kg



   Accessories


Standard accessories

1Set

English operation software

1pc

Cable connect with PC

1Set

100cm2 testing set

1Set

Calibration plate

2pcs

Rubber ring

1pc

Power Line

Optional accessories

Optional

7.8cm2 testing sets

Optional

Fixtures of other testing area

Optional

Air compressor

Optional

Computer



Application Industry


All kinds of materials can be tested by the High pressure-servo Hydrostatic Head Tester.

High pressure-servo Hydrostatic Head Tester
