Brand:
GESTERItem NO.:
GT-MB06Order(MOQ):
1Payment:
L/C or T/TProduct Origin:
ChinaShipping Port:
Xiamen PortLead Time:
in stockProduct Detail
Application:

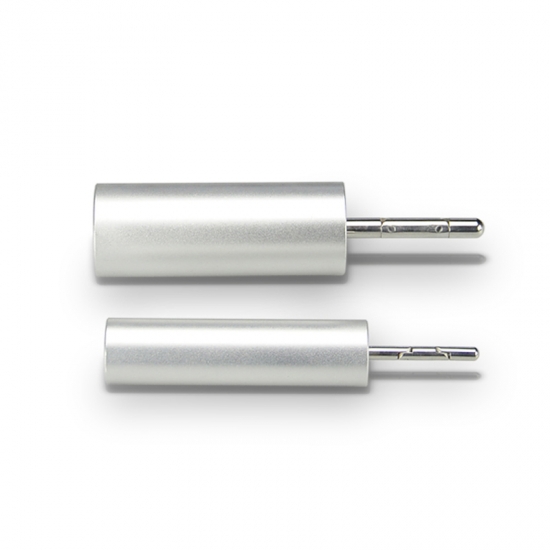

Standard Test Finger Probe & Accessibility Probe is used to determine whether the hazardous parts of toys can be touched. If it is accessible, then conduct the related test according to standards so as to reduce the damage hazards for children.
This tools include 2 models: Probe A and Probe B: 1. An accessible part for a toy or article intended for children under 3 years of age is one that can be contacted by any portion forward of the collar of the accessibility probe designated as probe A. 2. An accessible part for a toy or article intended for children over 3 years up to 8 years of age is one that can be contacted by any portion forward of the collar of the accessibility probe designate as probe B. 3. An accessible part for a toy or article intended for children of ages spanning both age groups is one that can be contacted by any portion forward of the collar of either probe A or B.
Standards:
EN-71-1 section 8.10
|
Model |
GT-MB06 Probe B |
|
Applicable age |
Under 36 months |
Above 36 months |
Finger diameter |
5.6mm |
8.6mm |
Finger-tip radius of curvature |
2.8mm |
4.3mm |
Finger total length |
44.0mm |
57.9mm |
Finger single section length |
14.7mm |
19.3mm |
Arm diameter |
25.9mm |
38.4mm |
Arm length |
101.6mm |
|
Extension rod diameter |
25.4mm |
38.1mm |
Extension rod length |
464.3mm |
451.6mm |
Material |
Arm: Aluminum alloy |
|
|
Finger: stainless steel |
|
Dimensions (L×W×H) |
25.9×25.9×146 mm |
38.4×38.4×160 mm |
Weight |
300g |
350g |
Accessory:
Optional accessories |
Optional |
Extension rod A |
Optional |
Extension rod B |

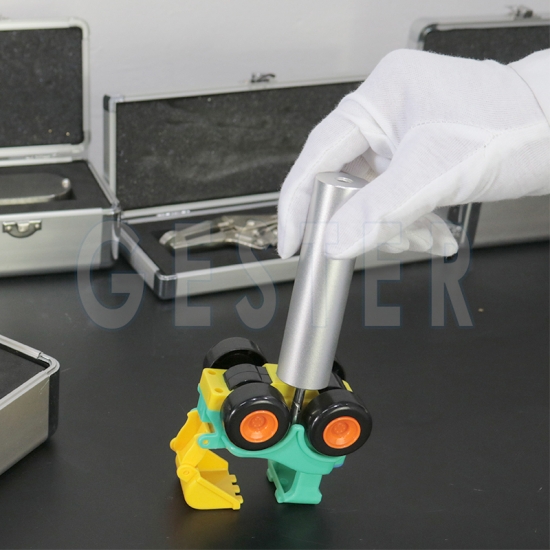

All kinds of children's product can be tested on the Accessibility Probe Test
