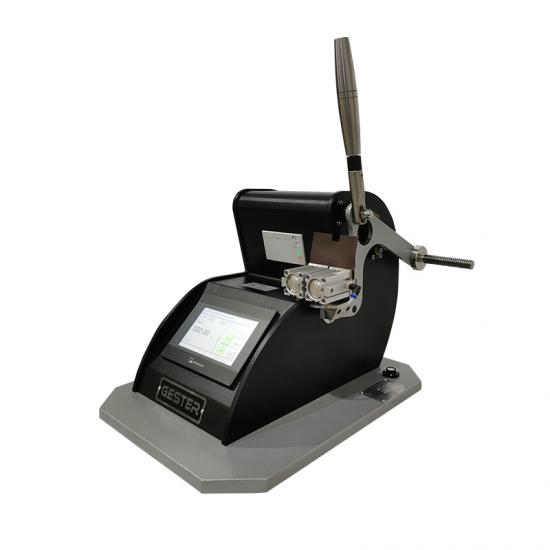

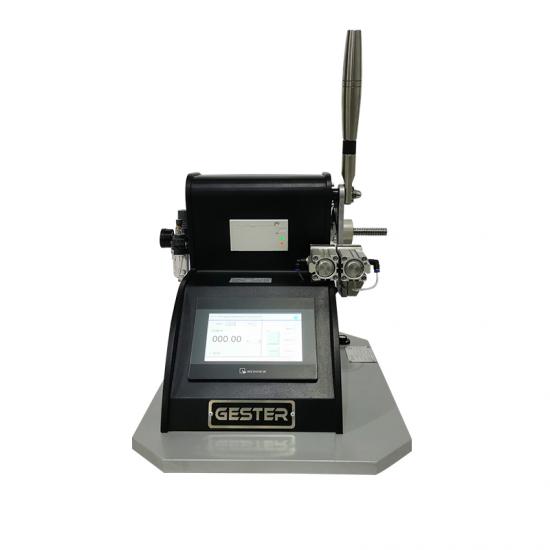

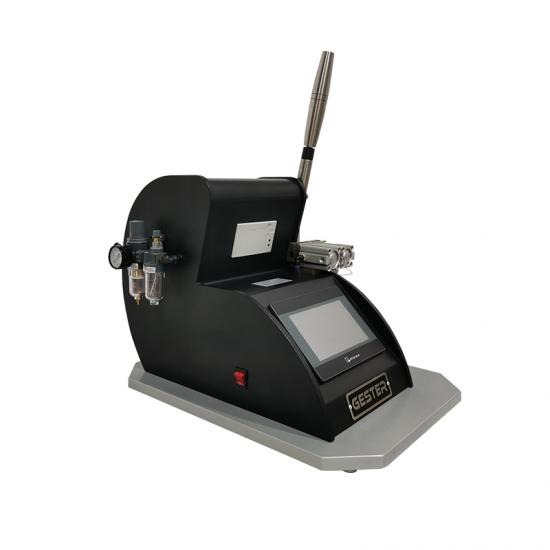

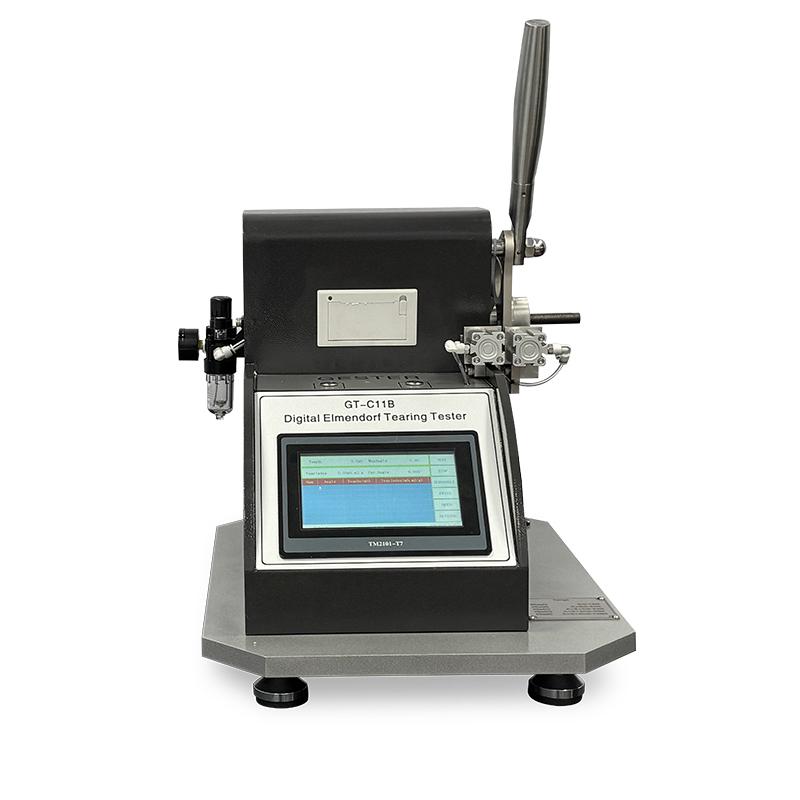

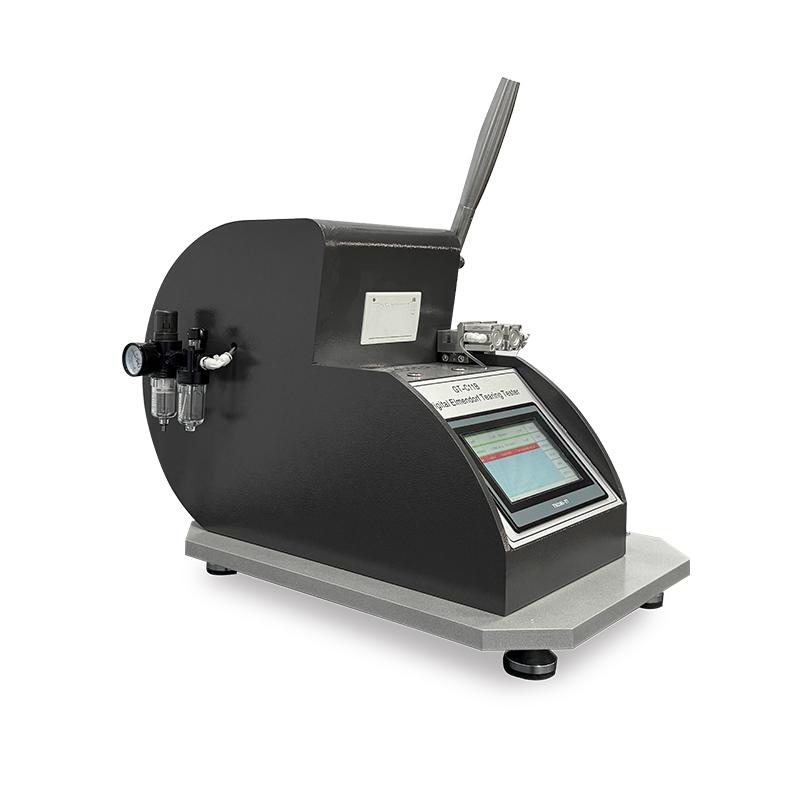

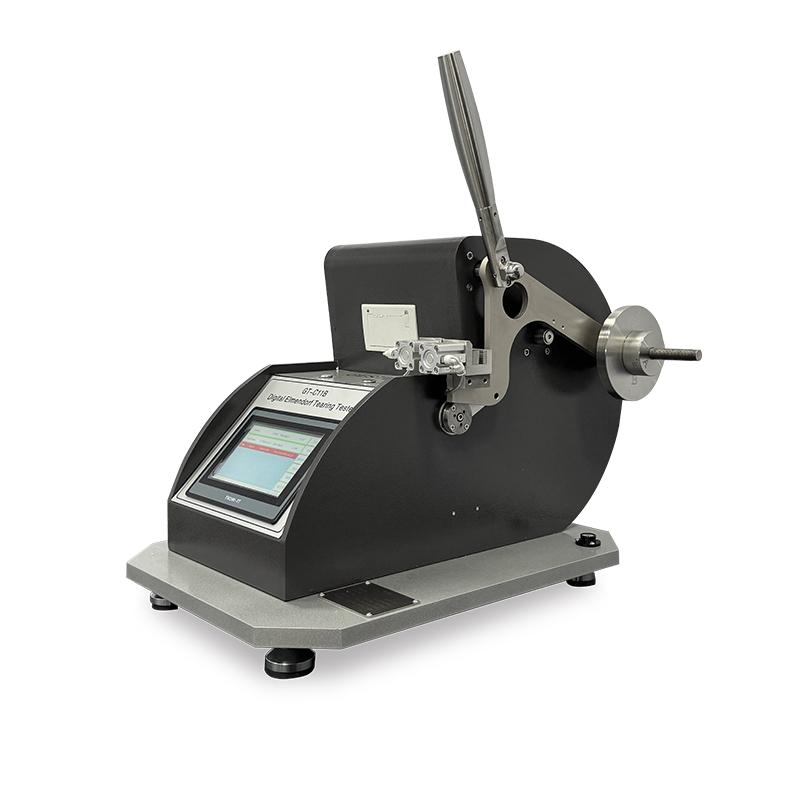

Digital Fabric Elmendorf Tearing Strength Tester GT-C11B

This Digital Fabric Elmendorf Tearing Strength Tester factory price, fast delivery.
  • Brand:

    GESTER
  • Item NO.:

    GT-C11B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 days
  • Product Detail

Digital Fabric Elmendorf Tearing Strength Tester GT-C11B



Product Introduction of elmendorf tester

Application:

This Digital Tearing Tester is designed for Elmendorf method tearing resistance test of textile, non-woven fabrics, paper, paper board, thin film, ventilation tape, metal sheet materials and etc.

Standards:

Textile Tear Test: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290,

M&S P29, NF G07-149

Paper Tear Test: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,
DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11,
SNV 198482, TAPPI T414, UNI 6444

Plastic Tear Test: GB/T11999, ISO6383-2, JIS K7128-2

Non-woven Tear Test: ASTMD5734


Feature of elmendorf tester
  • Elmendorf tearing strength tester: advanced calculation methods make sure precision test & good repetition.
  • Microcomputer system, can do auto test, calculate, analysis result, print test report.

  • upload the test data.
  • Humanity operation system, Chinese and English operation interface.
  • Elmendorf Tearing Tester Can look up all the datum & statistical result in mainframe freely.
  • Tear test unit can convention between N, gf, cN and lbs, suitable for different standards.

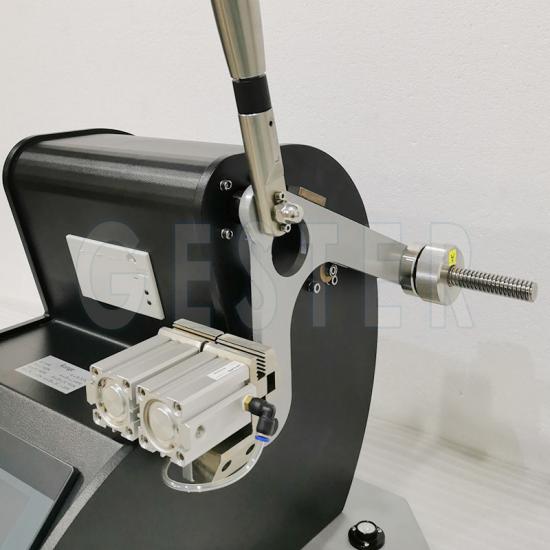

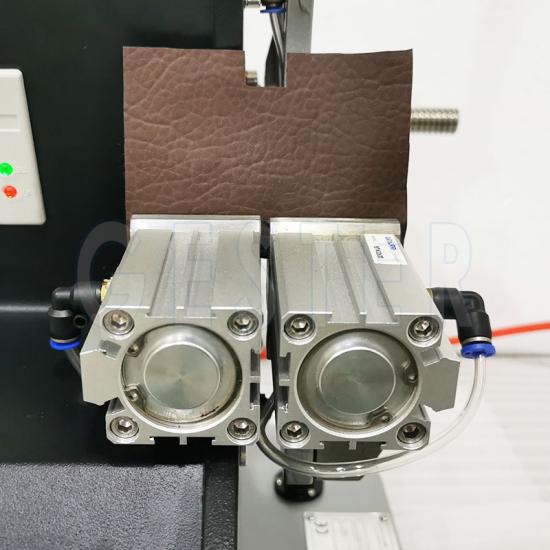

  • Pneumatic sample grips and pendulum bob released to make sure equal clamping force.

  • Cut sample automatically, making sure same shape of notch, reducing operation strength.

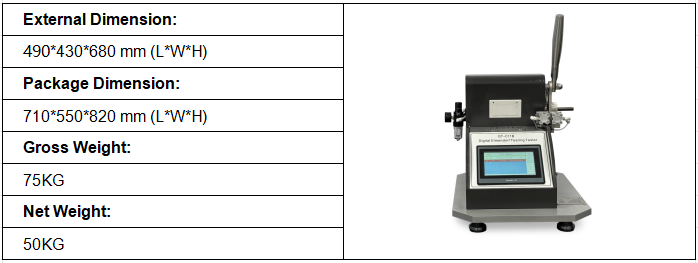

Elmendorf tester Dimensions



Key Specifications of elmendorf tester



Control mode

Touch screen

Range of tearing force

1600CN, 3200CN, 4800CN, 6400CN,

8000CN, 9600CN,11200CN, 12800CN

Accuracy

≤±0.2F·S

Incision length

20+/-0.2mm

Rip length

43mm

Sample clamping methods

Pneumatic clamp

Power supply

AC 220V 50/60HZ 100W

Dimensions

490 x 430 x 680mm (L x W x H)

Weight

50kg


Accessories

 Standard Accessories

1pc

Load A

1pc

Load B

3pcs

Load C

1pc

Sample template

1pc

English operation software

1pc

Cable connect with PC

Optional Accessories

1Set

Computer

1Set

Air Compressor


Digital Fabric Elmendorf Tearing Strength Tester GT-C11B

Application Industry of elmendorf tester

All kinds of below materials can be tested on the Fabric Elmendorf Tear Tester

Digital elmendorf tear tester
